主要規格
Intel Atom x5-Z8300
RAM:4G eMMC:128G
官網
https://wiki.radxa.com/RockpiX
這個產品是類似樹莓派 但驅動方面做的不是很友好 新手不好上手 需要另外打補丁才能用wifi和藍芽 最大的不同點是這個是X86的cpu 可以直接裝windows10

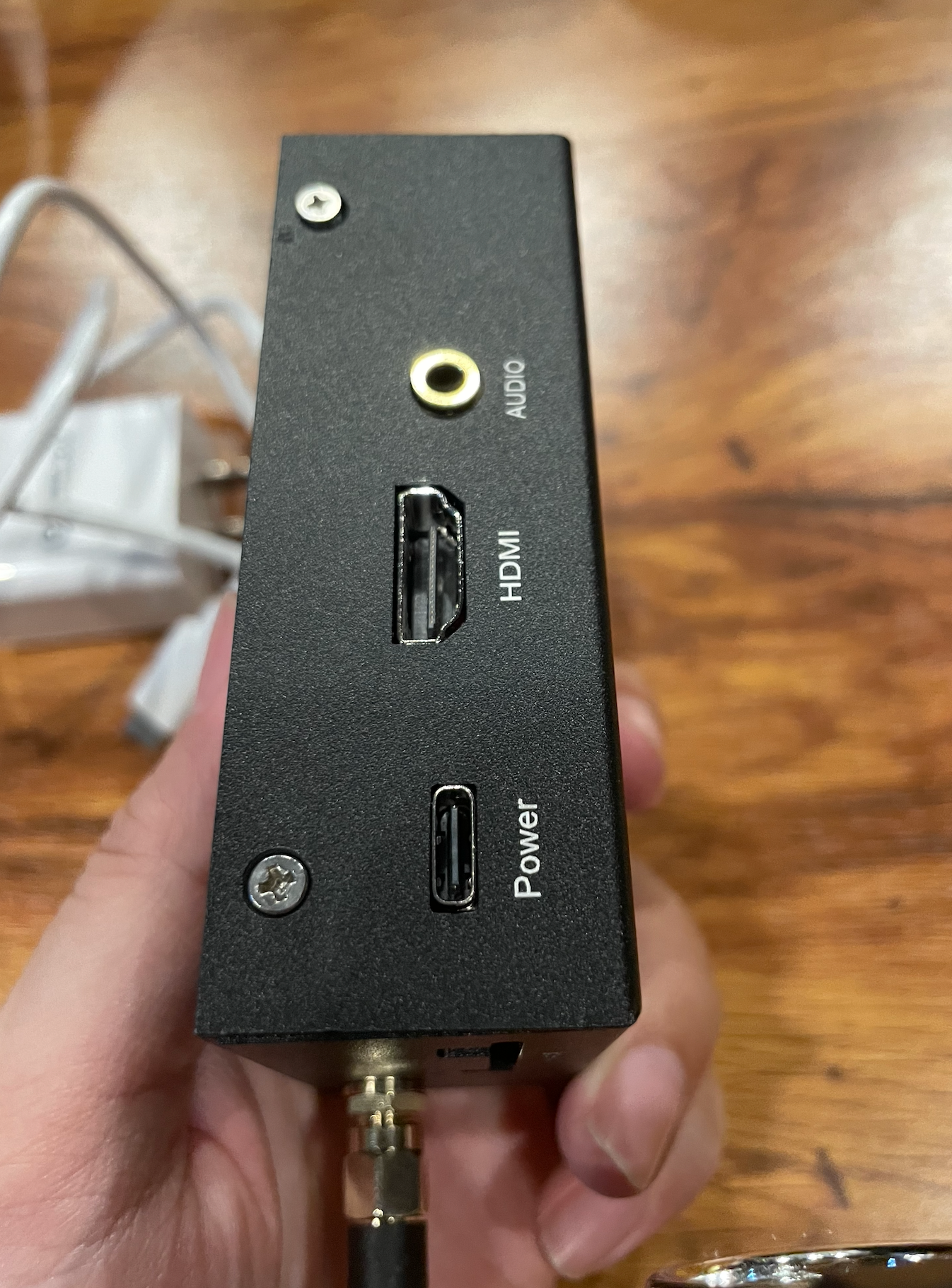

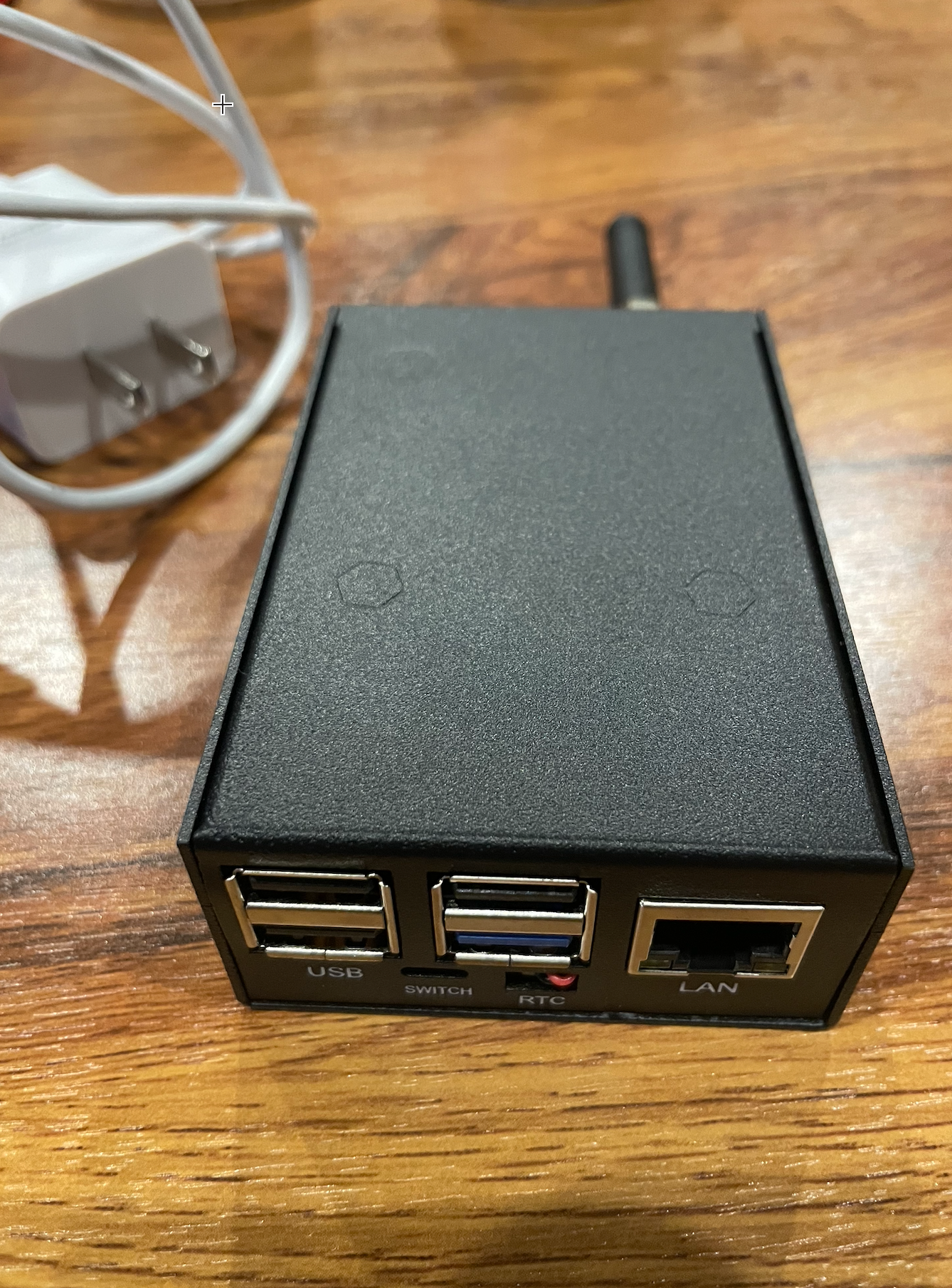

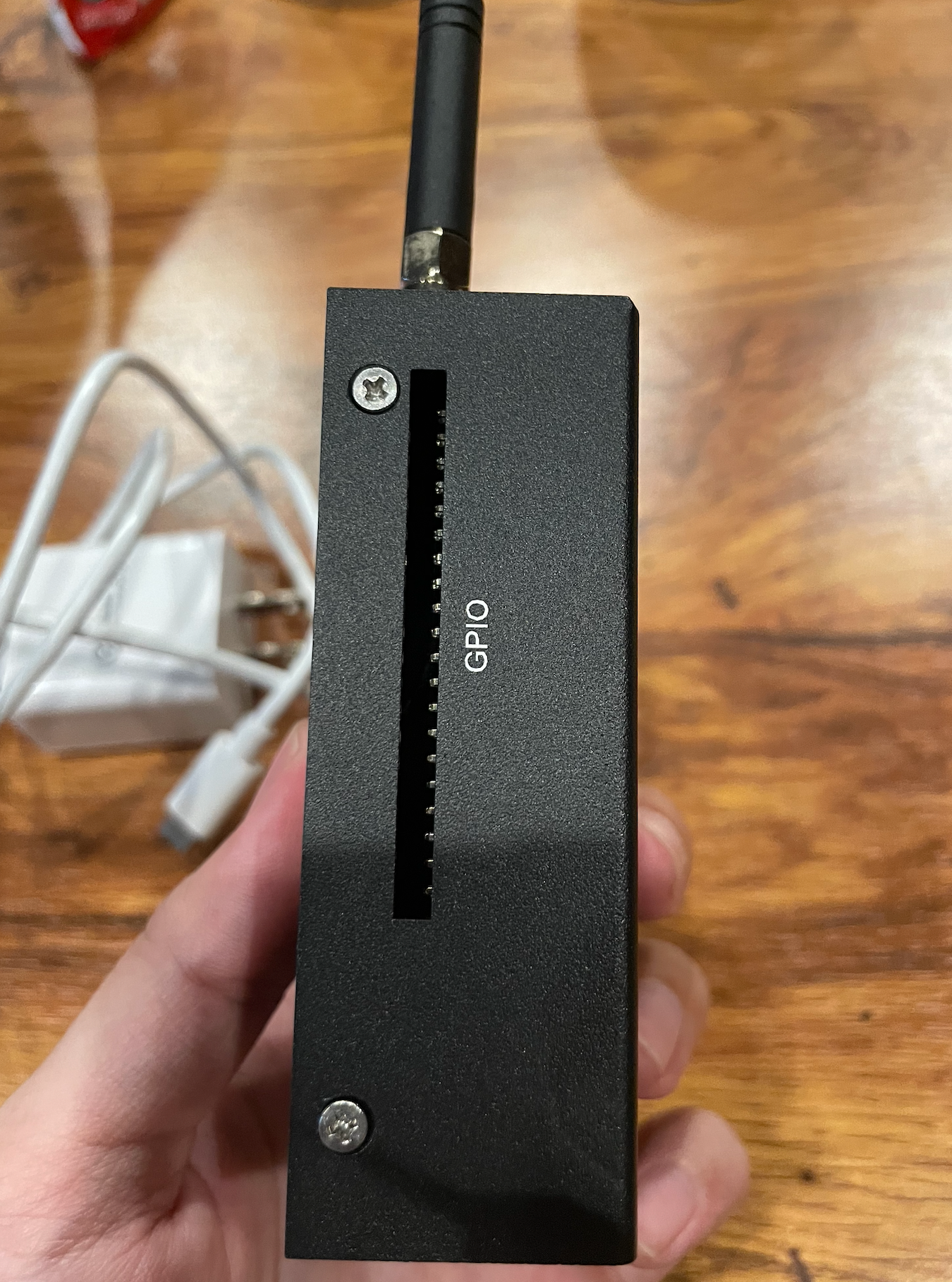

開箱圖

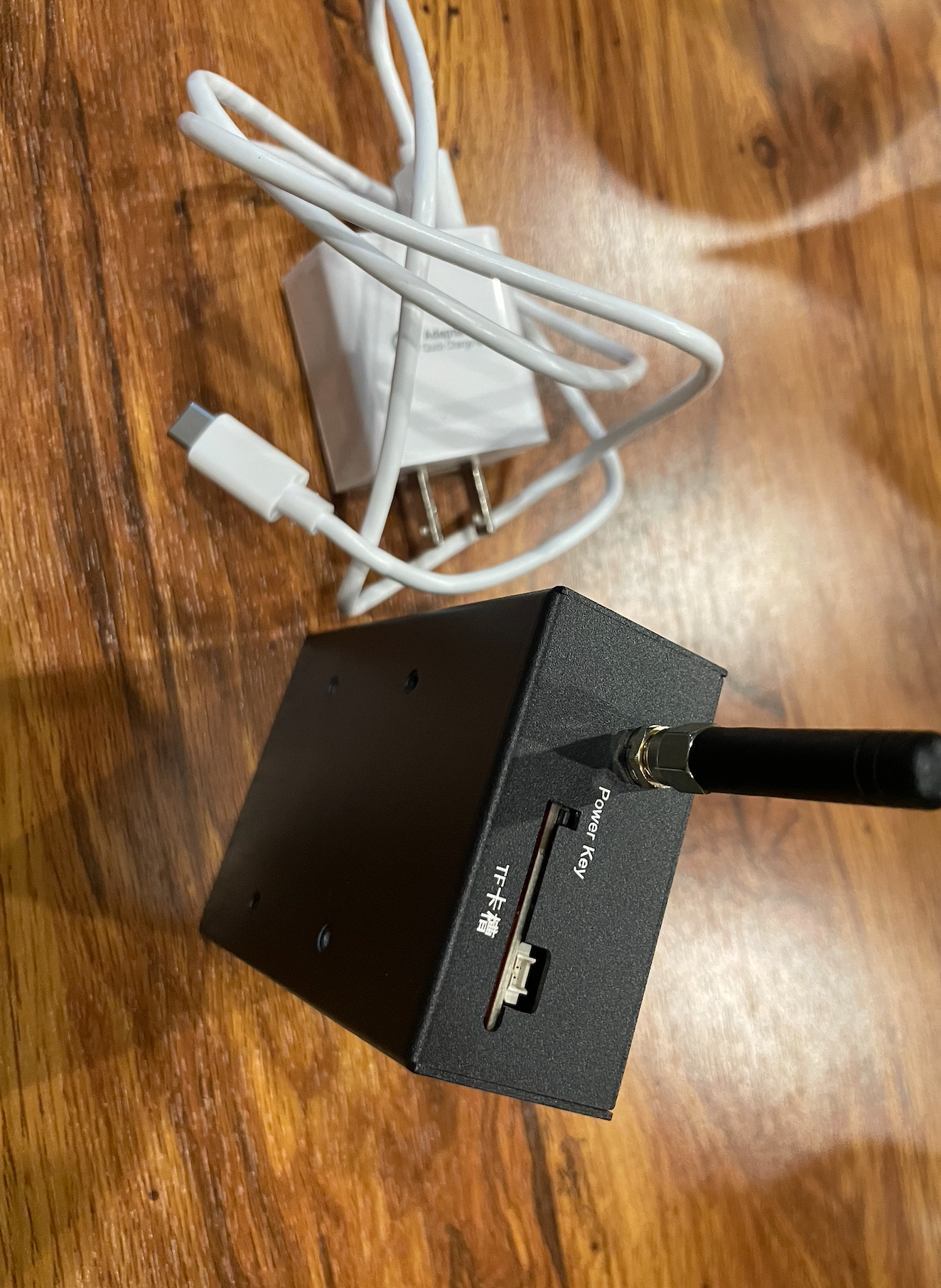

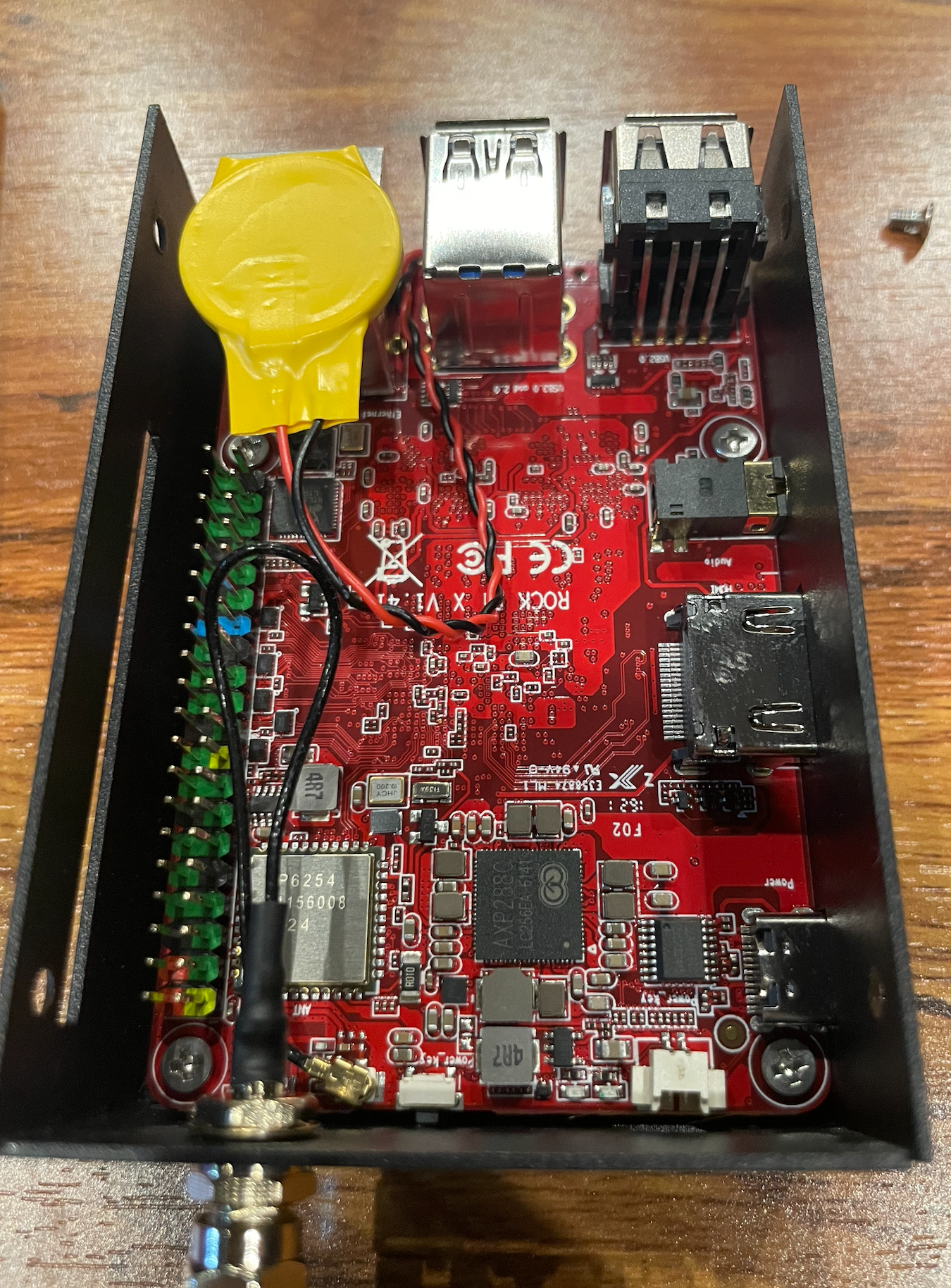

天線是外置的可以不裝 TF卡是額外擴充空間用 版子上已內建128G的rom
Ubuntu 官網下載iso
https://releases.ubuntu.com/22.04/

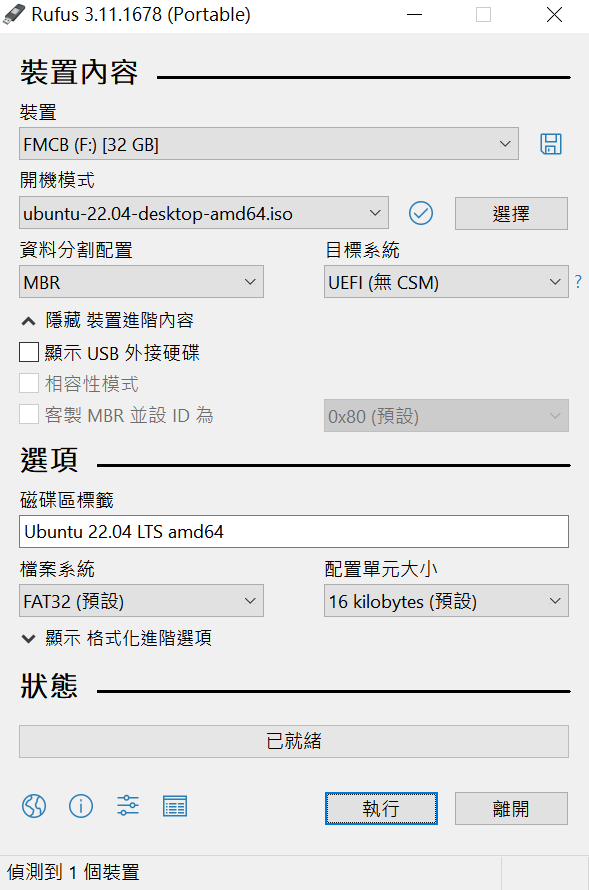

使用Rufus制作開機usb

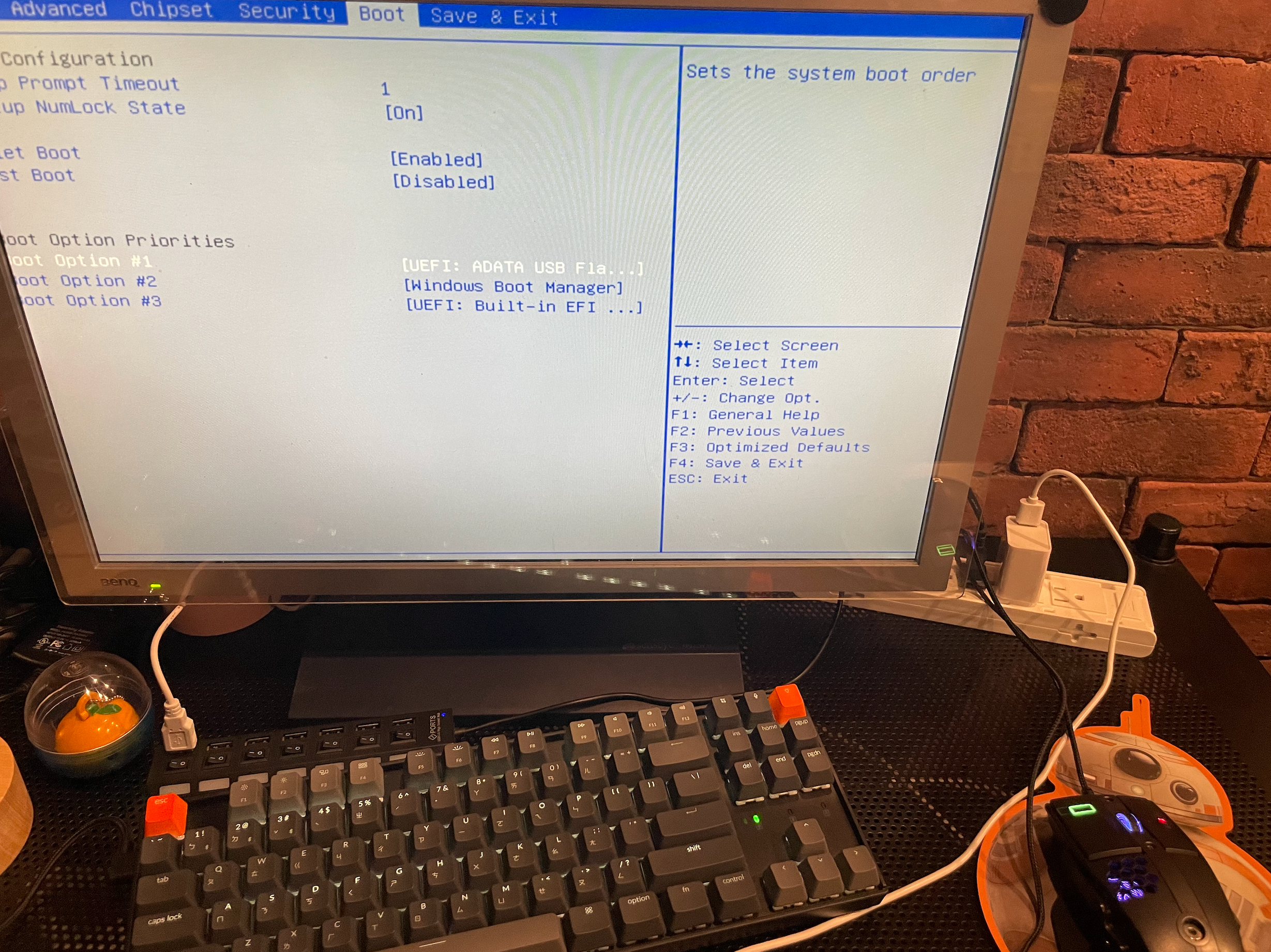

將開機usb設定第一個啟動

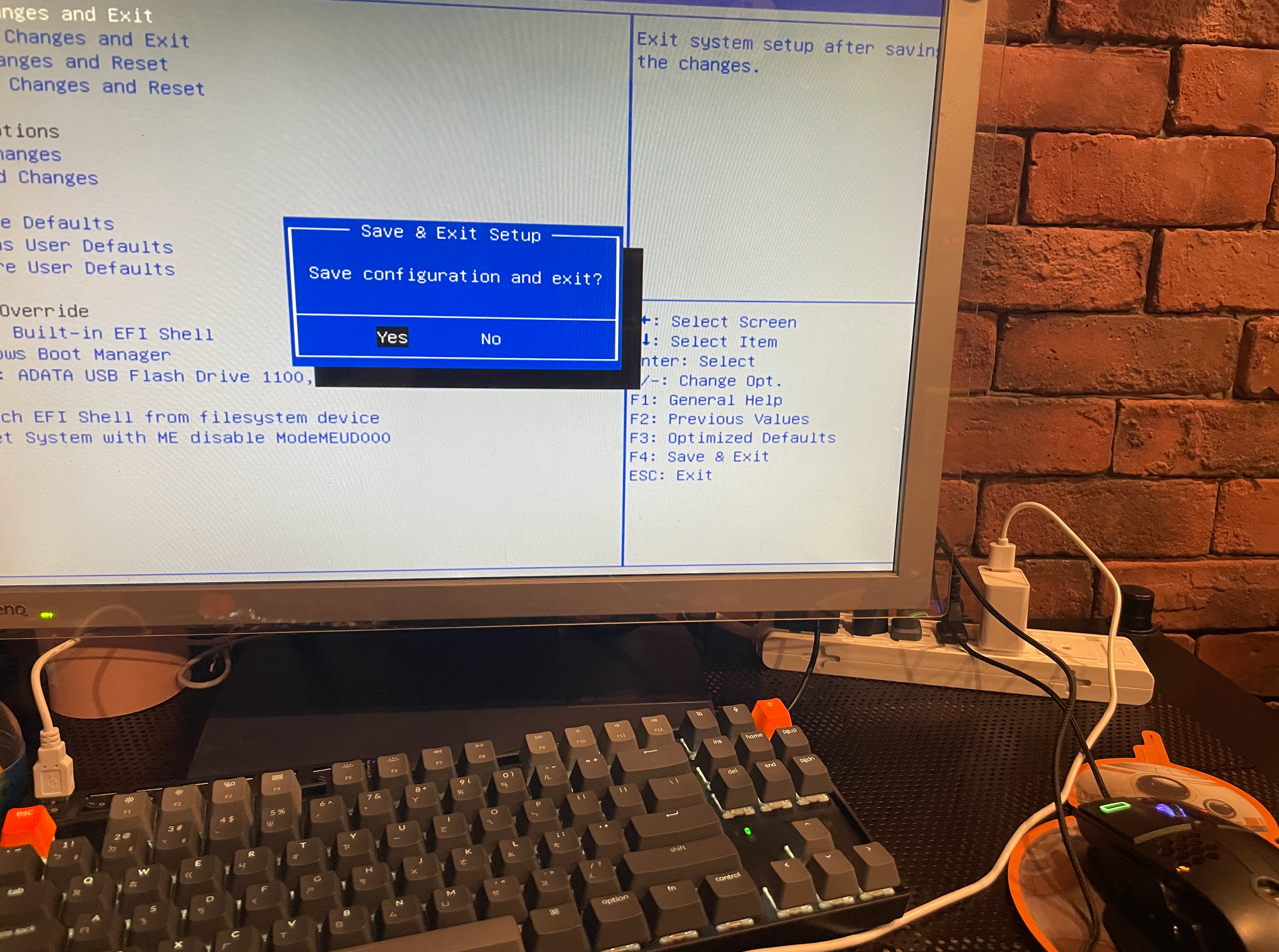

存檔並離開bios
剩下就照正常安裝的流程裝完系統即可
Welcome to Ubuntu 22.04 LTS (GNU/Linux 5.15.0-25-generic x86_64) * Documentation: https://help.ubuntu.com * Management: https://landscape.canonical.com * Support: https://ubuntu.com/advantage 22 updates can be applied immediately. 13 of these updates are standard security updates. To see these additional updates run: apt list --upgradable The programs included with the Ubuntu system are free software; the exact distribution terms for each program are described in the individual files in /usr/share/doc/*/copyright. Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by applicable law. /usr/bin/xauth: file /home/tony/.Xauthority does not exist tony@tony-ROCK-Pi-X:~$
桌面版執行取消待機設定
root@tony-ROCK-Pi-X:~# sudo systemctl mask sleep.target suspend.target hibernate.target hybrid-sleep.target Created symlink /etc/systemd/system/sleep.target → /dev/null. Created symlink /etc/systemd/system/suspend.target → /dev/null. Created symlink /etc/systemd/system/hibernate.target → /dev/null. Created symlink /etc/systemd/system/hybrid-sleep.target → /dev/null.
自動休眠模式已關閉
root@tony-ROCK-Pi-X:~# systemctl status sleep.target ○ sleep.target Loaded: masked (Reason: Unit sleep.target is masked.) Active: inactive (dead)
