Zabbix 6.0 LTS 的主要新聞

在這個新版本中 引入了對可擴展資源服務模型的支持該 包括 SLA 報告和小部件、通知 基於服務狀態變化的事實、靈活的權利系統、計算服務狀態的複雜規則、通過標籤映射服務問題以及可擴展至超過 100.000 個服務

這個新版本中的另一個新穎之處是 與新小部件的兼容性 Top hosts”、“Item value”、“Geo map”,以及開箱即用的 Kubernetes 監控,支持監控 SSL 和 TLS 證書參數,支持為 Zabbix 代理加載第三方插件,以及高級 VMware 監控。

另一方面,我們也可以發現 一組機器學習函數 用於異常檢測和基線監測。

這 支持按文本計算的指標,以及支持將文件監控狀態保存到代理,以實現對日誌文件的高可靠監控和 無需重新啟動代理即可更新自定義指標列表。

其他變化 從這個新版本中脫穎而出:

模板之間的依賴最小化,所有官方模板變得扁平化,沒有第三方依賴
能夠禁用“攀登取消”消息
在歷史表中使用唯一鍵來減少數據量
宏支持顯示具有擴展值的激活表達式
支持根本原因分析,包括警報宏
支持密碼複雜度策略和字典比較
改進和高性能的審計日誌,甚至在 Zabbix 服務器端
將 ODBC 輪詢器分配給能夠控制其數量的單獨類
與代理同步設置時性能改進並減少內存使用
支持最大 16 GB 的代理設置
對 MySQL 和 MariaDB 的 utf8mb4 支持
WEB監控壓縮支持

https://www.zabbix.com/whats_new_6_0

佈署用的yaml

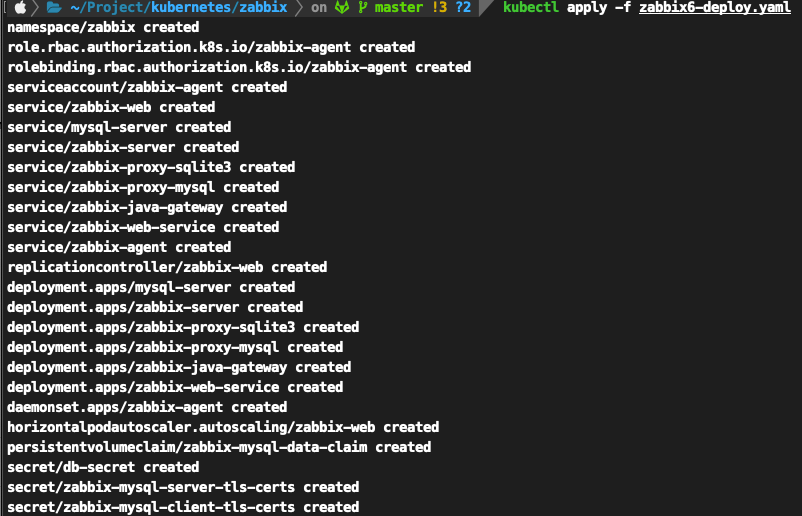

zabbix6-deploy.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: zabbix
  labels:
    name: zabbix
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: zabbix-agent
  namespace: zabbix
rules:
- verbs:
  - use
  apiGroups:
  - security.openshift.io
  resources:
  - securitycontextconstraints
  resourceNames:
  - privileged
  - hostaccess
  - hostnetwork
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: zabbix-agent
  namespace: zabbix
subjects:
- kind: ServiceAccount
  name: zabbix-agent
roleRef:
  kind: Role
  name: zabbix-agent
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: zabbix-agent
  namespace: zabbix
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-web
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 80
    targetPort: 8080
    name: web-http
  - port: 443
    targetPort: 8443
    name: web-https
  selector:
    name: zabbix-web
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: mysql-server
  labels:
    app: zabbix
    tier: db
  namespace: zabbix
spec:
  ports:
  - port: 3306
    targetPort: 3306
    name: mysql-server
  selector:
    name: mysql-server
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-server
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 10051
    targetPort: 10051
    name: zabbix-trapper
  - port: 162
    targetPort: 1162
    protocol: UDP
    name: snmp-trap
  selector:
    name: zabbix-server
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-proxy-sqlite3
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 10051
    targetPort: 10051
    name: zabbix-trapper
  - port: 162
    targetPort: 1162
    protocol: UDP
    name: snmp-trap
  selector:
    name: zabbix-proxy-sqlite3
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-proxy-mysql
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 10051
    targetPort: 10051
    name: zabbix-trapper
  - port: 162
    targetPort: 1162
    protocol: UDP
    name: snmp-trap
  selector:
    name: zabbix-proxy-mysql
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-java-gateway
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 10052
    targetPort: 10052
    name: zabbix-jmx
  selector:
    name: zabbix-java-gateway
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-web-service
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 10053
    targetPort: 10053
    name: zabbix-web-svc
  selector:
    name: zabbix-web-service
---
apiVersion: v1
kind: Service
metadata:
  name: zabbix-agent
  labels:
    app: zabbix
  namespace: zabbix
spec:
  ports:
  - port: 10050
    targetPort: 10050
    name: zabbix-agent
  selector:
    name: zabbix-agent
---
apiVersion: v1
kind: ReplicationController
metadata:
  name: zabbix-web
  labels:
    app: zabbix
    tier: zabbix-web
  namespace: zabbix
spec:
  replicas: 2
  template:
    metadata:
      labels:
        name: zabbix-web
        app: zabbix
    spec:
      volumes:
       - name: mysql-tls-certs
         secret:
          secretName: zabbix-mysql-client-tls-certs
      containers:
        - name: zabbix-web
          image: zabbix/zabbix-web-nginx-mysql:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            name: web-http
          - containerPort: 8443
            name: web-https
          resources:
           limits:
            cpu: 200m
            memory: 400Mi
           requests:
            cpu: 200m
            memory: 400Mi
          livenessProbe:
            httpGet:
              path: /
              port: web-http
              scheme: HTTP
            initialDelaySeconds: 15
            timeoutSeconds: 2
            periodSeconds: 10
            successThreshold: 1
            failureThreshold: 5
          readinessProbe:
            httpGet:
              path: /
              port: web-http
              scheme: HTTP
            initialDelaySeconds: 15
            timeoutSeconds: 2
            periodSeconds: 10
            successThreshold: 1
            failureThreshold: 5
          env:
          - name: ZBX_SERVER_NAME
            value: "Zabbix Kubernetes"
          - name: PHP_TZ
            value: "Europe/Riga"
          - name: DB_SERVER_HOST
            value: "mysql-server"
          - name: MYSQL_USER
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-user
          - name: MYSQL_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-pass
          - name: MYSQL_ROOT_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-root-pass
          - name: MYSQL_DATABASE
            value: "zabbix"
          - name: ZBX_DB_ENCRYPTION
            value: "true"
          - name: ZBX_DB_CA_FILE
            value: "/tmp/secrets/root-ca.pem"
          - name: ZBX_DB_CERT_FILE
            value: "/tmp/secrets/client-cert.pem"
          - name: ZBX_DB_KEY_FILE
            value: "/tmp/secrets/client-key.pem"
          - name: ZBX_DB_VERIFY_HOST
            value: "false"
          - name: ZBX_DB_CIPHER_LIST
            value: ""
#          - name: ZBX_HISTORYSTORAGEURL
#            value: ""
#          - name: ZBX_HISTORYSTORAGETYPES
#            value: ""
#          - name: ZBX_MAXEXECUTIONTIME
#            value: ""
#          - name: ZBX_MEMORYLIMIT
#            value: ""
#          - name: ZBX_POSTMAXSIZE
#            value: ""
#          - name: ZBX_UPLOADMAXFILESIZE
#            value: ""
#          - name: ZBX_MAXINPUTTIME
#            value: ""
#          - name: ZBX_SESSION_NAME
#            value: ""
#          - name: DB_DOUBLE_IEEE754
#            value: "true"
          - name: ZBX_SSO_SETTINGS
            value: "[]"
          - name: ENABLE_WEB_ACCESS_LOG
            value: "true"
          - name: DEBUG_MODE
            value: "false"
          volumeMounts:
          - mountPath: "/tmp/secrets"
            name: mysql-tls-certs
            readOnly: true
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql-server
  labels:
    app: zabbix
    tier: mysql-server
  namespace: zabbix
spec:
  strategy:
    type: Recreate
  selector:
    matchLabels:
      name: mysql-server
      app: zabbix
      tier: mysql-server
  template:
    metadata:
      labels:
        name: mysql-server
        app: zabbix
        tier: mysql-server
    spec:
      volumes:
       - name: zabbix-mysql-data
         persistentVolumeClaim:
          claimName: zabbix-mysql-data-claim
       - name: mysql-tls-certs
         secret:
          secretName: zabbix-mysql-server-tls-certs
      containers:
        - name: zabbix-db
          image: mysql:8.0
          args:
           - mysqld
           - --character-set-server=utf8
           - --collation-server=utf8_bin
           - --default-authentication-plugin=mysql_native_password
           - --require-secure-transport
           - --ssl-ca=/tmp/secrets/root-ca.pem
           - --ssl-cert=/tmp/secrets/server-cert.pem
           - --ssl-key=/tmp/secrets/server-key.pem
           - --tls-version=TLSv1.2,TLSv1.3
          ports:
          - containerPort: 3306
            name: mysql
          livenessProbe:
            exec:
              command: ["bash", "-c", "mysqladmin -u root -p$MYSQL_ROOT_PASSWORD ping"]
            timeoutSeconds: 3
            failureThreshold: 3
            periodSeconds: 10
          startupProbe:
            exec:
              command: ["bash", "-c", "mysql -u root -p$MYSQL_ROOT_PASSWORD -e 'SELECT 1'"]
            initialDelaySeconds: 5
            periodSeconds: 5
            timeoutSeconds: 3
            failureThreshold: 30
          env:
          - name: MYSQL_USER
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-user
          - name: MYSQL_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-pass
          - name: MYSQL_ROOT_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-root-pass
          - name: MYSQL_DATABASE
            value: "zabbix"
          volumeMounts:
           - mountPath: "/var/lib/mysql"
             name: zabbix-mysql-data
             readOnly: false
           - mountPath: "/tmp/secrets"
             name: mysql-tls-certs
             readOnly: true
          securityContext:
            capabilities: {}
            privileged: false
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zabbix-server
  labels:
    app: zabbix
    tier: server
    environment: dev
  namespace: zabbix
spec:
  strategy:
    type: Recreate
    rollingUpdate: null
  selector:
    matchLabels:
      name: zabbix-server
      app: zabbix
  template:
    metadata:
      labels:
        name: zabbix-server
        app: zabbix
    spec:
      volumes:
       - name: zabbix-snmptraps
         emptyDir: {}
       - name: mysql-tls-certs
         secret:
           secretName: zabbix-mysql-client-tls-certs
      containers:
        - name: zabbix-server
          image: zabbix/zabbix-server-mysql:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 10051
            protocol: TCP
            name: zabbix-trapper
          readinessProbe:
            tcpSocket:
              port: zabbix-trapper
            initialDelaySeconds: 5
            periodSeconds: 10
          livenessProbe:
            tcpSocket:
              port: zabbix-trapper
            initialDelaySeconds: 15
            periodSeconds: 20
          env:
          - name: MYSQL_USER
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-user
          - name: MYSQL_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-pass
          - name: MYSQL_ROOT_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-root-pass
          - name: MYSQL_DATABASE
            value: "zabbix"
          - name: ZBX_DBTLSCONNECT
            value: "required"
          - name: ZBX_DBTLSCAFILE
            value: "/tmp/secrets/root-ca.pem"
          - name: ZBX_DBTLSCERTFILE
            value: "/tmp/secrets/client-cert.pem"
          - name: ZBX_DBTLSKEYFILE
            value: "/tmp/secrets/client-key.pem"
          - name: ZBX_DBTLSCIPHER
            value: ""
          - name: ZBX_DBTLSCIPHER13
            value: ""
          - name: ZBX_HISTORYSTORAGEURL
            value: ""
          - name: ZBX_HISTORYSTORAGETYPES
            value: ""
          - name: ZBX_HISTORYSTORAGEDATEINDEX
            value: "1"
          - name: ZBX_STARTREPORTWRITERS
            value: "3"
          - name: ZBX_WEBSERVICEURL
            value: "http://zabbix-web-service:10053/report"
          - name: ZBX_DEBUGLEVEL
            value: "3"
          - name: ZBX_STARTPOLLERS
            value: ""
          - name: ZBX_STARTPREPROCESSORS
            value: ""
          - name: ZBX_STARTPOLLERSUNREACHABLE
            value: ""
          - name: ZBX_STARTTRAPPERS
            value: ""
          - name: ZBX_STARTPINGERS
            value: ""
          - name: ZBX_STARTDISCOVERERS
            value: ""
          - name: ZBX_STARTHTTPPOLLERS
            value: ""
          - name: ZBX_IPMIPOLLERS
            value: ""
          - name: ZBX_STARTTIMERS
            value: ""
          - name: ZBX_STARTESCALATORS
            value: ""
          - name: ZBX_STARTALERTERS
            value: ""
          - name: ZBX_JAVAGATEWAY_ENABLE
            value: "true"
          - name: ZBX_JAVAGATEWAY
            value: "zabbix-java-gateway"
          - name: ZBX_JAVAGATEWAYPORT
            value: "10052"
          - name: ZBX_STARTJAVAPOLLERS
            value: "5"
          - name: ZBX_STARTLLDPROCESSORS
            value: ""
          - name: ZBX_STATSALLOWEDIP
            value: ""
          - name: ZBX_STARTVMWARECOLLECTORS
            value: ""
          - name: ZBX_VMWAREFREQUENCY
            value: ""
          - name: ZBX_VMWAREPERFFREQUENCY
            value: ""
          - name: ZBX_VMWARECACHESIZE
            value: ""
          - name: ZBX_VMWARETIMEOUT
            value: ""
          - name: ZBX_ENABLE_SNMP_TRAPS
            value: "true"
          - name: ZBX_HOUSEKEEPINGFREQUENCY
            value: ""
          - name: ZBX_MAXHOUSEKEEPERDELETE
            value: ""
          - name: ZBX_CACHESIZE
            value: ""
          - name: ZBX_CACHEUPDATEFREQUENCY
            value: ""
          - name: ZBX_STARTDBSYNCERS
            value: ""
          - name: ZBX_HISTORYCACHESIZE
            value: ""
          - name: ZBX_HISTORYINDEXCACHESIZE
            value: ""
          - name: ZBX_TRENDCACHESIZE
            value: ""
          - name: ZBX_VALUECACHESIZE
            value: ""
          - name: ZBX_TIMEOUT
            value: "4"
          - name: ZBX_TRAPPERIMEOUT
            value: ""
          - name: ZBX_UNREACHABLEPERIOD
            value: ""
          - name: ZBX_UNAVAILABLEDELAY
            value: ""
          - name: ZBX_UNREACHABLEDELAY
            value: ""
          - name: ZBX_LOGSLOWQUERIES
            value: "3000"
          - name: ZBX_STARTPROXYPOLLERS
            value: ""
          - name: ZBX_PROXYCONFIGFREQUENCY
            value: ""
          - name: ZBX_PROXYDATAFREQUENCY
            value: ""
          - name: ZBX_EXPORTFILESIZE
            value: ""
          - name: ZBX_LOADMODULE
            value: ""
          - name: ZBX_TLSCAFILE
            value: ""
          - name: ZBX_TLSCRLFILE
            value: ""
          - name: ZBX_TLSCERTFILE
            value: ""
          - name: ZBX_TLSKEYFILE
            value: ""
          - name: ZBX_TLSCIPHERALL
            value: ""
          - name: ZBX_TLSCIPHERALL13
            value: ""
          - name: ZBX_TLSCIPHERCERT
            value: ""
          - name: ZBX_TLSCIPHERCERT13
            value: ""
          - name: ZBX_TLSCIPHERPSK
            value: ""
          - name: ZBX_TLSCIPHERPSK13
            value: ""
          - name: DEBUG_MODE
            value: "false"
          volumeMounts:
          - name: zabbix-snmptraps
            mountPath: "/var/lib/zabbix/snmptraps"
            readOnly: true
          - mountPath: "/tmp/secrets"
            name: mysql-tls-certs
            readOnly: true
          startupProbe:
            tcpSocket:
              port: 10051
            initialDelaySeconds: 15
            periodSeconds: 5
            timeoutSeconds: 3
            failureThreshold: 40
          livenessProbe:
            tcpSocket:
              port: 10051
            timeoutSeconds: 3
            failureThreshold: 3
            periodSeconds: 10
          securityContext:
            capabilities: {}
            privileged: false
        - name: zabbix-snmptraps
          image: zabbix/zabbix-snmptraps:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 1162
            protocol: UDP
            name: snmp-trap
          volumeMounts:
          - name: zabbix-snmptraps
            mountPath: /var/lib/zabbix/snmptraps/
            readOnly: false
          securityContext:
            capabilities: {}
            privileged: false
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zabbix-proxy-sqlite3
  labels:
    app: zabbix
    tier: proxy
  namespace: zabbix
spec:
  strategy:
    type: Recreate
    rollingUpdate: null
  selector:
    matchLabels:
      name: zabbix-proxy-sqlite3
      app: zabbix
  template:
    metadata:
      labels:
        name: zabbix-proxy-sqlite3
        app: zabbix
    spec:
      volumes:
        - name: proxy-sqlite-data
          emptyDir: {}
      containers:
        - name: zabbix-proxy-sqlite3
          image: zabbix/zabbix-proxy-sqlite3:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 10051
            protocol: TCP
            name: zabbix-trapper
          startupProbe:
            tcpSocket:
              port: 10051
            initialDelaySeconds: 15
            periodSeconds: 5
            timeoutSeconds: 3
            failureThreshold: 40
          livenessProbe:
            tcpSocket:
              port: 10051
            timeoutSeconds: 3
            failureThreshold: 3
            periodSeconds: 10
          env:
          - name: ZBX_PROXYMODE
            value: "1"
          - name: ZBX_SERVER_HOST
            value: ""
          - name: ZBX_SERVER_PORT
            value: ""
          - name: ZBX_HOSTNAME
            value: "zabbix-proxy-sqlite"
          - name: ZBX_ENABLEREMOTECOMMANDS
            value: "0"
          - name: ZBX_LOGREMOTECOMMANDS
            value: "1"
          - name: ZBX_HOSTNAMEITEM
            value: ""
          - name: ZBX_DEBUGLEVEL
            value: "3"
          - name: ZBX_PROXYLOCALBUFFER
            value: ""
          - name: ZBX_PROXYOFFLINEBUFFER
            value: ""
          - name: ZBX_STARTPOLLERS
            value: ""
          - name: ZBX_IPMIPOLLERS
            value: ""
          - name: ZBX_STARTPOLLERSUNREACHABLE
            value: ""
          - name: ZBX_STARTTRAPPERS
            value: ""
          - name: ZBX_STARTPINGERS
            value: ""
          - name: ZBX_STARTDISCOVERERS
            value: ""
          - name: ZBX_STARTHTTPPOLLERS
            value: ""
          - name: ZBX_JAVAGATEWAY_ENABLE
            value: "true"
          - name: ZBX_JAVAGATEWAY
            value: "zabbix-java-gateway"
          - name: ZBX_JAVAGATEWAYPORT
            value: "10052"
          - name: ZBX_STARTJAVAPOLLERS
            value: "5"
          - name: ZBX_STARTVMWARECOLLECTORS
            value: ""
          - name: ZBX_VMWAREFREQUENCY
            value: ""
          - name: ZBX_VMWAREPERFFREQUENCY
            value: ""
          - name: ZBX_VMWARECACHESIZE
            value: ""
          - name: ZBX_VMWARETIMEOUT
            value: ""
          - name: ZBX_HOUSEKEEPINGFREQUENCY
            value: ""
          - name: ZBX_CACHESIZE
            value: ""
          - name: ZBX_STARTDBSYNCERS
            value: ""
          - name: ZBX_HISTORYCACHESIZE
            value: ""
          - name: ZBX_HISTORYINDEXCACHESIZE
            value: ""
          - name: ZBX_TIMEOUT
            value: "4"
          - name: ZBX_TRAPPERIMEOUT
            value: ""
          - name: ZBX_UNREACHABLEPERIOD
            value: ""
          - name: ZBX_UNAVAILABLEDELAY
            value: ""
          - name: ZBX_UNREACHABLEDELAY
            value: ""
          - name: ZBX_LOGSLOWQUERIES
          - name: ZBX_LOADMODULE
            value: ""
          - name: ZBX_TLSCONNECT
            value: ""
          - name: ZBX_TLSACCEPT
            value: ""
          - name: ZBX_TLSCAFILE
            value: ""
          - name: ZBX_TLSCRLFILE
            value: ""
          - name: ZBX_TLSSERVERCERTISSUER
            value: ""
          - name: ZBX_TLSSERVERCERTSUBJECT
            value: ""
          - name: ZBX_TLSCERTFILE
            value: ""
          - name: ZBX_TLSKEYFILE
            value: ""
          - name: ZBX_TLSPSKIDENTITY
            value: ""
          - name: ZBX_TLSPSKFILE
            value: ""
          - name: ZBX_TLSCIPHERALL
            value: ""
          - name: ZBX_TLSCIPHERALL13
            value: ""
          - name: ZBX_TLSCIPHERCERT
            value: ""
          - name: ZBX_TLSCIPHERCERT13
            value: ""
          - name: ZBX_TLSCIPHERPSK
            value: ""
          - name: ZBX_TLSCIPHERPSK13
            value: ""
          - name: DEBUG_MODE
            value: "false"
          volumeMounts:
          - mountPath: "/var/lib/zabbix/db_data"
            name: proxy-sqlite-data
          securityContext:
            capabilities: {}
            privileged: false
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zabbix-proxy-mysql
  labels:
    app: zabbix
    tier: proxy
  namespace: zabbix
spec:
  strategy:
    type: Recreate
    rollingUpdate: null
  selector:
    matchLabels:
      name: zabbix-proxy-mysql
      app: zabbix
  template:
    metadata:
      labels:
        name: zabbix-proxy-mysql
        app: zabbix
    spec:
      volumes:
       - name: mysql-tls-certs
         secret:
           secretName: zabbix-mysql-client-tls-certs
      containers:
        - name: zabbix-proxy-mysql
          image: zabbix/zabbix-proxy-mysql:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 10051
            protocol: TCP
            name: zabbix-trapper
          readinessProbe:
            tcpSocket:
              port: zabbix-trapper
            initialDelaySeconds: 5
            periodSeconds: 10
          livenessProbe:
            tcpSocket:
              port: zabbix-trapper
            initialDelaySeconds: 15
            periodSeconds: 20
          env:
          - name: MYSQL_USER
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-user
          - name: MYSQL_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-zbx-pass
          - name: MYSQL_ROOT_PASSWORD
            valueFrom:
             secretKeyRef:
              name: db-secret
              key: db-root-pass
          - name: MYSQL_DATABASE
            value: "zabbix_proxy"
          - name: ZBX_DBTLSCONNECT
            value: "required"
          - name: ZBX_DBTLSCAFILE
            value: "/tmp/secrets/root-ca.pem"
          - name: ZBX_DBTLSCERTFILE
            value: "/tmp/secrets/client-cert.pem"
          - name: ZBX_DBTLSKEYFILE
            value: "/tmp/secrets/client-key.pem"
          - name: ZBX_DBTLSCIPHER
            value: ""
          - name: ZBX_DBTLSCIPHER13
            value: ""
          - name: ZBX_PROXYMODE
            value: "0"
          - name: ZBX_SERVER_HOST
            value: "zabbix-server"
          - name: ZBX_SERVER_PORT
            value: "10051"
          - name: ZBX_HOSTNAME
            value: "zabbix-proxy-mysql"
          - name: ZBX_ENABLEREMOTECOMMANDS
            value: "0"
          - name: ZBX_LOGREMOTECOMMANDS
            value: "1"
          - name: ZBX_HOSTNAMEITEM
            value: ""
          - name: ZBX_DEBUGLEVEL
            value: "3"
          - name: ZBX_PROXYLOCALBUFFER
            value: ""
          - name: ZBX_PROXYOFFLINEBUFFER
            value: ""
          - name: ZBX_PROXYHEARTBEATFREQUENCY
            value: ""
          - name: ZBX_CONFIGFREQUENCY
            value: ""
          - name: ZBX_DATASENDERFREQUENCY
            value: ""
          - name: ZBX_STARTPOLLERS
            value: ""
          - name: ZBX_IPMIPOLLERS
            value: ""
          - name: ZBX_STARTPOLLERSUNREACHABLE
            value: ""
          - name: ZBX_STARTTRAPPERS
            value: ""
          - name: ZBX_STARTPINGERS
            value: ""
          - name: ZBX_STARTDISCOVERERS
            value: ""
          - name: ZBX_STARTHTTPPOLLERS
            value: ""
          - name: ZBX_JAVAGATEWAY_ENABLE
            value: "true"
          - name: ZBX_JAVAGATEWAY
            value: "zabbix-java-gateway"
          - name: ZBX_JAVAGATEWAYPORT
            value: "10052"
          - name: ZBX_STARTJAVAPOLLERS
            value: "5"
          - name: ZBX_STARTVMWARECOLLECTORS
            value: ""
          - name: ZBX_VMWAREFREQUENCY
            value: ""
          - name: ZBX_VMWAREPERFFREQUENCY
            value: ""
          - name: ZBX_VMWARECACHESIZE
            value: ""
          - name: ZBX_VMWARETIMEOUT
            value: ""
          - name: ZBX_HOUSEKEEPINGFREQUENCY
            value: ""
          - name: ZBX_CACHESIZE
            value: ""
          - name: ZBX_STARTDBSYNCERS
            value: ""
          - name: ZBX_HISTORYCACHESIZE
            value: ""
          - name: ZBX_HISTORYINDEXCACHESIZE
            value: ""
          - name: ZBX_TIMEOUT
            value: "4"
          - name: ZBX_TRAPPERIMEOUT
            value: ""
          - name: ZBX_UNREACHABLEPERIOD
            value: ""
          - name: ZBX_UNAVAILABLEDELAY
            value: ""
          - name: ZBX_UNREACHABLEDELAY
            value: ""
          - name: ZBX_LOGSLOWQUERIES
            value: ""
          - name: ZBX_LOADMODULE
            value: ""
          - name: ZBX_TLSCONNECT
            value: ""
          - name: ZBX_TLSACCEPT
            value: ""
          - name: ZBX_TLSCAFILE
            value: ""
          - name: ZBX_TLSCRLFILE
            value: ""
          - name: ZBX_TLSSERVERCERTISSUER
            value: ""
          - name: ZBX_TLSSERVERCERTSUBJECT
            value: ""
          - name: ZBX_TLSCERTFILE
            value: ""
          - name: ZBX_TLSKEYFILE
            value: ""
          - name: ZBX_TLSPSKIDENTITY
            value: ""
          - name: ZBX_TLSPSKFILE
            value: ""
          - name: ZBX_TLSCIPHERALL
            value: ""
          - name: ZBX_TLSCIPHERALL13
            value: ""
          - name: ZBX_TLSCIPHERCERT
            value: ""
          - name: ZBX_TLSCIPHERCERT13
            value: ""
          - name: ZBX_TLSCIPHERPSK
            value: ""
          - name: ZBX_TLSCIPHERPSK13
            value: ""
          - name: DEBUG_MODE
            value: "false"
          volumeMounts:
          - mountPath: "/tmp/secrets"
            name: mysql-tls-certs
            readOnly: true
          securityContext:
            capabilities: {}
            privileged: false
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zabbix-java-gateway
  labels:
    app: zabbix
    tier: java
  namespace: zabbix
spec:
  selector:
    matchLabels:
     name: zabbix-java-gateway
     app: zabbix
  template:
    metadata:
      labels:
        name: zabbix-java-gateway
        app: zabbix
    spec:
      containers:
        - name: zabbix-java-gateway
          image: zabbix/zabbix-java-gateway:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 10052
            protocol: TCP
            name: zabbix-java
          livenessProbe:
            tcpSocket:
              port: 10052
            initialDelaySeconds: 5
            failureThreshold: 3
            periodSeconds: 2
          env:
          - name: ZBX_START_POLLERS
            value: "5"
          - name: ZBX_TIMEOUT
            value: "3"
          - name: ZBX_DEBUGLEVEL
            value: "info"
          - name: JAVA_OPTIONS
            value: ""
          - name: DEBUG_MODE
            value: "false"
          securityContext:
            capabilities: {}
            privileged: false
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: zabbix-web-service
  labels:
    app: zabbix
    tier: web-service
  namespace: zabbix
spec:
  selector:
    matchLabels:
     name: zabbix-web-service
     app: zabbix
  template:
    metadata:
      labels:
        name: zabbix-web-service
        app: zabbix
    spec:
      containers:
        - name: zabbix-web-service
          image: zabbix/zabbix-web-service:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          resources:
           limits:
            cpu: 100m
            memory: 512Mi
           requests:
            cpu: 100m
            memory: 512Mi
          ports:
          - containerPort: 10053
            protocol: TCP
            name: zabbix-web-svc
          livenessProbe:
            tcpSocket:
              port: 10053
            initialDelaySeconds: 5
            failureThreshold: 3
            periodSeconds: 2
          env:
          - name: ZBX_ALLOWEDIP
            value: "0.0.0.0/0"
          - name: ZBX_LISTENPORT
            value: "10053"
          - name: ZBX_DEBUGLEVEL
            value: "3"
          - name: ZBX_TIMEOUT
            value: "3"
          - name: ZBX_TLSACCEPT
            value: ""
          - name: ZBX_TLSCAFILE
            value: ""
          - name: ZBX_TLSCERTFILE
            value: ""
          - name: ZBX_TLSKEYFILE
            value: ""
          - name: DEBUG_MODE
            value: "false"
          securityContext:
            capabilities: {}
            privileged: false
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: zabbix-agent
  labels:
    app: zabbix
    tier: agent
  namespace: zabbix
spec:
  selector:
   matchLabels:
    name: zabbix-agent
  updateStrategy:
   type: RollingUpdate
   rollingUpdate:
    maxUnavailable: 1
  template:
    metadata:
      labels:
        name: zabbix-agent
        app: zabbix
    spec:
      hostNetwork: true
      hostIPC: true
      hostPID: true
      automountServiceAccountToken: true
      serviceAccountName: zabbix-agent
      nodeSelector:
       beta.kubernetes.io/os: linux
      containers:
        - name: zabbix-agent
          image: zabbix/zabbix-agent:alpine-6.0-latest
          imagePullPolicy: IfNotPresent
          resources:
           limits:
            cpu: 100m
            memory: 54Mi
           requests:
            cpu: 100m
            memory: 54Mi
          ports:
          - containerPort: 10050
            name: zabbix-agent
          livenessProbe:
            tcpSocket:
              port: 10050
            initialDelaySeconds: 5
            failureThreshold: 3
            periodSeconds: 2
          env:
            - name: ZBX_DEBUGLEVEL
              value: "3"
            - name: ZBX_DENYKEY
              value: "system.run[*]"
            - name: ZBX_ALLOWKEY
              value: ""
            - name: ZBX_LOGREMOTECOMMANDS
              value: "1"
            - name: ZBX_SERVER_HOST
              value: "zabbix-server"
            - name: ZBX_PASSIVE_ALLOW
              value: "true"
            - name: ZBX_PASSIVESERVERS
              value: ""
            - name: ZBX_ACTIVE_ALLOW
              value: "true"
            - name: ZBX_ACTIVESERVERS
              value: ""
            - name: ZBX_STARTAGENTS
              value: ""
            - name: ZBX_HOSTNAME
              valueFrom:
               fieldRef:
                 fieldPath: spec.nodeName
            - name: ZBX_HOSTNAMEITEM
              value: ""
            - name: ZBX_METADATA
              value: ""
            - name: ZBX_METADATAITEM
              value: ""
            - name: ZBX_TIMEOUT
              value: ""
            - name: ZBX_BUFFERSEND
              value: ""
            - name: ZBX_BUFFERSIZE
              value: ""
            - name: ZBX_MAXLINESPERSECOND
              value: ""
            - name: ZBX_UNSAFEUSERPARAMETERS
              value: "0"
            - name: ZBX_LOADMODULE
              value: ""
            - name: ZBX_HOSTINTERFACE
              value: ""
            - name: ZBX_HOSTINTERFACEITEM
              value: ""
            - name: ZBX_REFRESHACTIVECHECKS
              value: ""
            - name: DEBUG_MODE
              value: "3"
            - name: ZBX_TLSCONNECT
              value: ""
            - name: ZBX_TLSACCEPT
              value: ""
            - name: ZBX_TLSCAFILE
              value: ""
            - name: ZBX_TLSCRLFILE
              value: ""
            - name: ZBX_TLSSERVERCERTISSUER
              value: ""
            - name: ZBX_TLSSERVERCERTSUBJECT
              value: ""
            - name: ZBX_TLSCERTFILE
              value: ""
            - name: ZBX_TLSKEYFILE
              value: ""
            - name: ZBX_TLSPSKIDENTITY
              value: ""
            - name: ZBX_TLSPSKFILE
              value: ""
            - name: ZBX_TLSCIPHERALL
              value: ""
            - name: ZBX_TLSCIPHERALL13
              value: ""
            - name: ZBX_TLSCIPHERCERT
              value: ""
            - name: ZBX_TLSCIPHERCERT13
              value: ""
            - name: ZBX_TLSCIPHERPSK
              value: ""
            - name: ZBX_TLSCIPHERPSK13
              value: ""
          securityContext:
            capabilities: {}
            privileged: true
            readOnlyRootFilesystem: false
            runAsNonRoot: true
          volumeMounts:
            - name: dev-volume
              mountPath: /node/dev
            - name: procfs-volume
              readOnly: true
              mountPath: /node/proc
            - name: boot-volume
              readOnly: true
              mountPath: /node/boot
            - name: run-volume
              mountPath: /node/run
            - name: var-run-volume
              mountPath: /node/var/run
      volumes:
        - name: dev-volume
          hostPath:
            path: /dev
            type: ''
        - name: procfs-volume
          hostPath:
            path: /proc
            type: ''
        - name: boot-volume
          hostPath:
            path: /boot
            type: ''
        - name: run-volume
          hostPath:
            path: /run
            type: ''
        - name: var-run-volume
          hostPath:
            path: /var/run
            type: ''
---
apiVersion: autoscaling/v2beta1
kind: HorizontalPodAutoscaler
metadata:
  name: zabbix-web
  namespace: zabbix
spec:
  scaleTargetRef:
    apiVersion: v1
    kind: ReplicationController
    name: zabbix-web
  minReplicas: 1
  maxReplicas: 5
  metrics:
  - type: Resource
    resource:
      name: cpu
      targetAverageUtilization: 70
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: zabbix-mysql-data-claim
  namespace: zabbix
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 20Gi
---
apiVersion: v1
kind: List
metadata:
 namespace: zabbix
items:
  - apiVersion: v1
    kind: Secret
    type: Opaque
    metadata:
     name: db-secret
     namespace: zabbix
    data:
     db-root-pass: "c29tZV90ZXN0X3Bhc3M="
     db-zbx-user: "emFiYml4"
     db-zbx-pass: "emJ4X3Bhc3N3b3Jk"
---
apiVersion: v1
data:
  root-ca.pem: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURVekNDQWp1Z0F3SUJBZ0lKQUxNWTFSWlB5VVZsTUEwR0NTcUdTSWIzRFFFQkN3VUFNRUF4RXpBUkJnb0oKa2lhSmsvSXNaQUVaRmdOamIyMHhGekFWQmdvSmtpYUprL0lzWkFFWkZnZGxlR0Z0Y0d4bE1SQXdEZ1lEVlFRRApEQWRHWVd0bExVTkJNQjRYRFRJeE1Ea3lNakV4TlRJMU1Gb1hEVE14TURnd01URXhOVEkxTUZvd1FERVRNQkVHCkNnbVNKb21UOGl4a0FSa1dBMk52YlRFWE1CVUdDZ21TSm9tVDhpeGtBUmtXQjJWNFlXMXdiR1V4RURBT0JnTlYKQkFNTUIwWmhhMlV0UTBFd2dnRWlNQTBHQ1NxR1NJYjNEUUVCQVFVQUE0SUJEd0F3Z2dFS0FvSUJBUURqRjQ1NApXTVVKc1NqZ3ZzSk4rNE5na3dET2thUWdOMjdXVnJyVWRIVjhoVW9sYU4vMWdSeE80cTNES2lPRnhIZlBITzVXCmg0am1YQ3VVSTA0NXRwaEVaZDlCZDd4eUU2dUF3VGtya2pVWTczMExQRmZsYzJYQXE3TkYvMElidHB1aXQ3cFIKdUV2dTc0aVNMampLWVFaWHlxUGJLazlIaitWa2xCcTV2MjJUNTlxUmwzeFV5QUNRZGVEWVdPbTg2ZFgrY2FUVAorWWt6VXhDOHFRVVdBT2JUVThBWWZXbHA3NjRpY0NuMEdab3BCalN2dXQrZWxoTnl2eHk2alhRdU0xemZYMXUrCm56bVdiQzdOMTFqK2JDZWxVd2kwQUhIZUZrRFFrcHdPaGdycW9hbG5XUHk4VVNjMDFJRTIwZnlmTEptc3ZaVU4KZ3pnK0EwOGNqOThwemF2REFnTUJBQUdqVURCT01CMEdBMVVkRGdRV0JCVGtEenFQVEV0UGFHWWhBSzkrNjB6dgpBdklmS1RBZkJnTlZIU01FR0RBV2dCVGtEenFQVEV0UGFHWWhBSzkrNjB6dkF2SWZLVEFNQmdOVkhSTUVCVEFECkFRSC9NQTBHQ1NxR1NJYjNEUUVCQ3dVQUE0SUJBUURaY1A2cmJPWFMvSFcray8yczU1Nk14VU9vTkRNenRhdlIKQXJCa01HUGk5N2FGSW1MV2h6MVJqWGw3UjZKUmE0a3VVSGdiRXBuL3F1OUFISk1LejZ6UnVSRW9EM2UzTlIwVApJL3hkbHFJOVBzTmdIaDVwSzcvb281TzUrR21vTURoK3pRTHlnbXVYcWlSenpXV3NBOVcwaXpoMFJiZHRwQzR5CmdSYmxLMVBsTVhNeWs0eFArcHljV0treExMbWhqOWhuTDdkQlR3KzQzOW13eW5MZjlhSkdHajZaNmI2ZjJTS1EKWGlPZUNFOTVQRlR4S1BCbzRvQmdjOHI2NGFxc0FNelVCa0lQZWtnQ2xQWkJJSnJtKzZZdU9HbUROVUFtUCs3RApKdmRIbGVucGJ3RXJBZ3FKYWx4NjdxVGM2eVUzWUY5bTZMTkprRHlCYXJ6VU01MVdQc1JUCi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
  server-cert.pem: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUMrVENDQWVFQ0FRRXdEUVlKS29aSWh2Y05BUUVMQlFBd1FERVRNQkVHQ2dtU0pvbVQ4aXhrQVJrV0EyTnYKYlRFWE1CVUdDZ21TSm9tVDhpeGtBUmtXQjJWNFlXMXdiR1V4RURBT0JnTlZCQU1NQjBaaGEyVXRRMEV3SGhjTgpNakV3T1RJeU1URTFNalV4V2hjTk16RXdPREF4TVRFMU1qVXhXakJGTVJNd0VRWUtDWkltaVpQeUxHUUJHUllEClkyOXRNUmN3RlFZS0NaSW1pWlB5TEdRQkdSWUhaWGhoYlhCc1pURVZNQk1HQTFVRUF3d01iWGx6Y1d3dGMyVnkKZG1WeU1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBb0U2OVRZcFNqMDhTMmZoNQorYUtIQVlwT2JmbkR1Z01XNTlsOXljUFdoYUVqVzNaaXp1UkNoMWV1eUR0YnFlUzRubnpIY3RlKzF2TE9xcHA2CnQ2RmM5azROcDFqYkMyRUoxUWUyRDNvVTdpdEVTMnBXV2g1Rm4xR1dwek5FOXhxM2c2MFdBd1BZTG1MMUdDTloKNUdpU0ZENjBSei85WTdUYjFrVDl1RzVPUUVLeUg2dk42QjZ0N2ZTRk9TRmhVaVc4QVc1bTBZNngxdHhNSkcvRgpqamJGTGdHTTV2SXhuTHlwRW5uNm01UXV5enlSbm9rQVNESCtieVVtV1hhWUcvODUwODNEN0FBblN2UmZzb2pyCjhaQkVPd0QwVUtmNFZDaVl0b0hPanFhWmdUMElSWmhabGozR3U1TG9uZkx1S3lMN0ZtZmhLRmwrZnNOVGx3OGEKMVlqSkN3SURBUUFCTUEwR0NTcUdTSWIzRFFFQkN3VUFBNElCQVFCaUMxWjNLcUV2clRZU0V6eDJPcExnNFpKMwo1OTFjUFI2UEs2OXBESmQ0MWFCdnY5Mko3TmdxVUpqZ0VvZ0FsUWpZZmFJNDQ4MUZTUngvbDBKeDdwaXNPSTY0Cm1BSy96bXh6bXEzKzJCY016aXc1a09ZUFpHVGh3a0NUYnRjaWNYSTBveVNNUC8yN3hjTmFyZEdyaVdRMGJBZFcKOEIyNTY5TFQwWDA2ZWtHdktOS0xucnBBQk5FanBJelJyZXgyaSsrQnEybUVhTHRYQWVMVmtvbmUxNzFjUDFBWgpuVktmekNqQ3U1T0ZsNm1ST2dCRnMyMUtiU2RnQzl2K0JITFhmK3pXeTB1NDZjUmg1U09vb0VDSkJPNVlEVERrCm5ldDB2dUZtdUFZS3NINjRLMm9jU3IwYjBBZVlmbFRnalBKZktTS2ZXbnhKQnFnMnJ5azBlT3lUQnRVTgotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
  server-key.pem: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb2dJQkFBS0NBUUVBb0U2OVRZcFNqMDhTMmZoNSthS0hBWXBPYmZuRHVnTVc1OWw5eWNQV2hhRWpXM1ppCnp1UkNoMWV1eUR0YnFlUzRubnpIY3RlKzF2TE9xcHA2dDZGYzlrNE5wMWpiQzJFSjFRZTJEM29VN2l0RVMycFcKV2g1Rm4xR1dwek5FOXhxM2c2MFdBd1BZTG1MMUdDTlo1R2lTRkQ2MFJ6LzlZN1RiMWtUOXVHNU9RRUt5SDZ2Tgo2QjZ0N2ZTRk9TRmhVaVc4QVc1bTBZNngxdHhNSkcvRmpqYkZMZ0dNNXZJeG5MeXBFbm42bTVRdXl6eVJub2tBClNESCtieVVtV1hhWUcvODUwODNEN0FBblN2UmZzb2pyOFpCRU93RDBVS2Y0VkNpWXRvSE9qcWFaZ1QwSVJaaFoKbGozR3U1TG9uZkx1S3lMN0ZtZmhLRmwrZnNOVGx3OGExWWpKQ3dJREFRQUJBb0lCQUh0NWlxZmlCZ3RxSFp3VQpubWJnZjlwNDNFWXJIazMxT1R4bHNsU3BhbC9OS1AyMjV3NXlsS2ZJcXRDQm4rM3hSUjZWLzgzK1RYa2sxbmhqCnVtZ2NldzBnTzdZTlk5S1U4TXpNUHJnWEVXNE5sM0g3T3YzNDJTbUkzMkJ6eGdnSzVSVWdTWmNTNi8xMnJVL2wKVXNUeW9xbkRUbnFlMkI1blhQamlkUWNNdDJzWWUralpUcGRWVHhVUUxlUWZsVC9ZcWVsM2pxZTJwZXVzK25USAp6dHRGRkFvb05IN0xtVHpJSFJtNnhuSDVoMmptcFZOZVRudkczb09sRk9mNmlObWp5blE3d3p6U1BWRHNQa3lJCmdpMGwrT0VGZFY5bUwyS2xEbnlpL25xM1d1d3E5L1NpVStXbFNmUjhMd21JaXYrY0ZOSVl6SnYyUTAvSkRmRGwKN2g5Y3FkRUNnWUVBMHFMazZzZ3d2ckZqam5weHhKMmRsMi9IWGZoaUxRWC9FcXVQVUJUYllCM0EwMUR1dDlHQQp0T3V2VlVEQWREV2lpMkZMQ1pwdFh0OUZ5c1A1UW1USkxaY2JsNG14L2ptdmxvb2ZPQzNDY0JBaEZLOGdoU2FTCjNFMGZmWVJmalE2U2F4WkF3WEJwR3lUSHpYY2c5dzViNCtJWUx2TWg5aGZha0JpVFpwY09HVU1DZ1lFQXd0VU0KZ3F4Y3piK0dMQThpOHc4Z3hmM1FNWXpXWUtwSlVqRUV3SFJjcTlRdVFHVDFFVlMzNzJwbU5mRXZQWmVTKyszUQp2Y01KS1hpeXUwZ0FUaFVSMDhndkpxVXdscHFwSUsvQ2c2b0tYRzV2SjM1Z1ZJSExKSFFMK3UzUlRXVVhRTlRXCkUrdS9NeTMzYlhaUHlodWUrb2VYU1NVQ1kxaEw3OE5BbE5jaWtKa0NnWUFKMDBGY1ZrUTMwT3gwNis4OG5hR0oKTzlTUDVKTW55SHpTY1NBNU93L1VsdTYwckxURjdFYlZxWnkvSEVzZDRKYVphOHRsUWtmUndoWnVVOS9mb2ZYawpZNFVNOTRaTzluL2pSTVFhQ2NCbEc4dC9QSUFHMWZySnZlczNIcUthWU5DaG9DTWJJdFEwU08zcy9wNlNCNkJ2CnE4ODIrVzVmSFZPN252blpNamlkSXdLQmdFend4OHorOW5OR05GMUg2UHhsdUFLWWRsUnJFdW4vdFk3Z3pzaVYKNjFic0p3dkZFc2F5VnlVVU5xTU15U1FncktvU3c0RjgrU3hJZndUWXJVNG9vZTZwdW4wZmRTMjBqQi9kYVFxSAo1eW1UYnhBQXAxZ1lIYm9hbmZTTllEK1pNWEtuMnBicFhZdC9scHZDd2tYRlhLWUJUK3hSMGp5YlRQbTFlTmFPCmt4YlpBb0dBWjNiZk5EUGpBRlYwWjhYTktGZjcrTStHaHNaLzZRdFpGSFRBRnZEZk1KU1pBQmozZmJOQkRJSmoKemJTenlGT2xPSklaN21rWWNxNE50MGNseldUQ0FoRHlBbDdkbTZ2dkdQZ2xhOUZ2OHpKN0JhVEtRaVFGL1pPWQpOZGRpT3ZiMXBTUTFwL2ZOUkN2SUU2Z1hZeXdnUXN2VU80czV4OTg5OEZuMGtTMWRXK0E9Ci0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
kind: Secret
metadata:
  name: zabbix-mysql-server-tls-certs
  namespace: zabbix
type: Opaque
---
apiVersion: v1
data:
  client-cert.pem: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4ekNDQWRzQ0FRRXdEUVlKS29aSWh2Y05BUUVMQlFBd1FERVRNQkVHQ2dtU0pvbVQ4aXhrQVJrV0EyTnYKYlRFWE1CVUdDZ21TSm9tVDhpeGtBUmtXQjJWNFlXMXdiR1V4RURBT0JnTlZCQU1NQjBaaGEyVXRRMEV3SGhjTgpNakV3T1RJeU1URTFNalV4V2hjTk16RXdPREF4TVRFMU1qVXhXakEvTVJNd0VRWUtDWkltaVpQeUxHUUJHUllEClkyOXRNUmN3RlFZS0NaSW1pWlB5TEdRQkdSWUhaWGhoYlhCc1pURVBNQTBHQTFVRUF3d0dZMnhwWlc1ME1JSUIKSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQXVZTllXVUp3Y2Nsd0oxbnYwS1YyNGVncQpUQW1vM1N5cTFwMS9OTGZIdGd1UVcyZllSUXJkVFZ5OU80R0VyWmUwVCtmMnFwRUtPN2JoSExvVElnMFZXQmNoClU4K2g1dVhSZlVhZC90eHVKNWh0QnBIL1hpR0NEbVFpSFVtd0hxbHJwK0pDL3lmTzJwb3pDalpaOVF4RVBlYjgKQmEwaHgycUZXUEtKc1ZSY0JTejMzMm1tY1ZjeGE5YmtsWVVQZHgwUTVGSHFWZ1pXOTI0QXdHOC95QThxcUFiNApPcVkxbUZkUW9VaW9kTjRGUDQzSkVGSWxrMnExWUVjenlSMHlidVJIelBIQjhJUG1Fa2lNaHlpSitsdnJaSzZLCjR5NWZVSzQ0SXkxanYveEJDSnJ3TmNnVVZBdGFYTStiV2RXS3U4dDNudGV6ME02ZWU2Ym5WSHhTeDh0NWF3SUQKQVFBQk1BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQW9SOE5SZEo4YUJsWnZBOWFCVzQ1SFdnWGF0Z1ExcGRpNwo3R1BpL3Qzem5MWTNNamMrUVZSdmZLUlFvU2wwc095NUZ5NFlZWHdwZDlQRUsxVXBReFRaK201SGtVWm9LR095CnlISzZ1aGZ6NFY5NXNRdkcvdGcvaS9ESHQvVlJYMEpsc2lpTW1zalFYRFpPcUpaOUNPTnhOYUlObkdSZGZEUVoKNVRneUEraXVyTU5mcThpUU9HcDhYRGkzNStvMlp4enpDWHl3SGRRVDExcTdSbThBZDNGaG5xKzJQVGR0UDduYwpZWFB4Ym1ibkxMeTBReFl3Y1BYQlkrWjNrTFlxbk1wK2ozajIwcE0rTE1sMkNBbTNDblJsdU9yKytrTTV1T29hCnkxOHN6QWJRSjF4L0RoMEFmQUZKOG90THMrUU9IU2prdUoveEJCelkxelNETnRNdmxUMDEKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
  client-key.pem: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb2dJQkFBS0NBUUVBdVlOWVdVSndjY2x3SjFudjBLVjI0ZWdxVEFtbzNTeXExcDEvTkxmSHRndVFXMmZZClJRcmRUVnk5TzRHRXJaZTBUK2YycXBFS083YmhITG9USWcwVldCY2hVOCtoNXVYUmZVYWQvdHh1SjVodEJwSC8KWGlHQ0RtUWlIVW13SHFscnArSkMveWZPMnBvekNqWlo5UXhFUGViOEJhMGh4MnFGV1BLSnNWUmNCU3ozMzJtbQpjVmN4YTlia2xZVVBkeDBRNUZIcVZnWlc5MjRBd0c4L3lBOHFxQWI0T3FZMW1GZFFvVWlvZE40RlA0M0pFRklsCmsycTFZRWN6eVIweWJ1Ukh6UEhCOElQbUVraU1oeWlKK2x2clpLNks0eTVmVUs0NEl5MWp2L3hCQ0pyd05jZ1UKVkF0YVhNK2JXZFdLdTh0M250ZXowTTZlZTZiblZIeFN4OHQ1YXdJREFRQUJBb0lCQUdYaVRlNVB2K091Und0RgpxS0RGanlJSTJOb0Q0QnNBZ2g3MlJydVVSM21pcGppZE1yalFlN1FXUDlOamtaT3BJcDFUL3pPMERwTzNIN0VnClBJdlI5YXY0b0JRZ2o0RjVMSEdLREJIQnpEbXd6QWYwdlBSY29NbjRrb2ZWUllYQmRGK3lzeXJoR1FrVDhQNGwKMVlmd29iWUJtdDRmTk5NSm5JeTZQNGNGbHJnOEJlcmVnRFp2Z3FqWlN3Q3RoUDV4QzMzeEFEaGtJazVuVk80QQpTNEpEUGNSTDNkaU5IK3YxRkVhY2EraGc3dzNpY09XZWQ4Y0xMQnJqZmpkaXJkTUpXRW52NnYrSlgzZ2N4bjg2CkxpeXZkSk9ZNTdqSFZpTndLQ0NwQlJOVUJmbWFhK2lXNEs5QTE3K0h5VmdUTFZnLzhoeGZwV292Nkc3UEh2NTcKaXlJelBya0NnWUVBOXpjV042bW95Q0VCc0ZYRzBDTk5DdE54RHVjU290ZVoxK0JqZENBbnZycnRiQVNubUZUOAppdG5LaFR3Nkl4K3lkNzJaeXNHWkI2MGloTXZsRlhMUnRtQ0pUVGpWY0xDOXVhM2t1OHZYUzdBdmQ4YWZUcmJoCmlLeVRLMmg5NklxYUpxQzR6R0tkNStLejhKZFM0RGpjdmRUTlhSOHp6MGQxLzg1c0hXZDhsNDhDZ1lFQXdCcjAKZXZpbFN0cjdhZGxWY0tONnQ0ZWxlVXJjVTdYdElSZDhncjNpSk5jUGo0MENVUW0xTXZ5WXhTckR5MEpTQVdLbwpHWkswQVE3S1oyY2FoK2JWV3dvUnVES1hBR0NHQVE3ODRrU3lqQisrQkpqaWhDNHZkNERrcGFpSVYvdVY1NEwxCnZQVDNQcC9PdncyQU4yU0lHcWJwMjM0SmJzWlNCWVVYbWVKNmNtVUNnWUFhN1BNTWlQd0xJQjB3K1lhMzhNQloKWjRJdTMxZ1dTR2xISy9kcEZIOS90SmhiWlg1amh3NGlpV29YYk9IZ0pYbW90UXZsRzRUeFl4Z1pZcVBHM0VTZgpHcENaeXBEa3Z6dEsxL2ZMeEgza2pvSDlCN01lUGFqKzI5MERvMVBqV2dWRUk4azg2WmpOUXRIYWFJRHNUd1VyCjM5dW1RdG0vdjhiSVg5RkN1cHpGWFFLQmdBbDhTejRYTVBJMVJkekFJbnZoVnBuaFZNWmNiK3lpT3djN1JhYWYKQVorWUR1aWpxYzJla1JmbmFST3pQTis0Y3B3bTV1MzhWRzhJNysyVEpiZzRLYWpKSW43WjRLTGdJVDNFSTdCNAplK2gzV01hWlZmWDQ0ZGNnd2lsNzNOK2JTSmVaMjlCc3VCaWJnM1hqa01VcmJaMERTT0RScEYyWDVVem9lWFhiCnZQZ1JBb0dBSjVvLzNIOWJCbEp3b3Z0WjF5VUY2KzRjaFpodGhiU1VJOS9zSXFueHllNEtZMGtMaEpxU013ZkEKZ1hPSW10cmxzNllxU3VkVGovaGNwbi85VDIzbnFOSEpyd3RKWXJVMk9zdUYrdnNHUE5DeFQwZTUrSXZlQ015QQplZFhuSU9BaTBjSXhxUjluWVNXNDR0cjFEcG8rN1c5SEZ5aXZ5eVZ4M09uMzlMUi9EUHM9Ci0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
  root-ca.pem: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURVekNDQWp1Z0F3SUJBZ0lKQUxNWTFSWlB5VVZsTUEwR0NTcUdTSWIzRFFFQkN3VUFNRUF4RXpBUkJnb0oKa2lhSmsvSXNaQUVaRmdOamIyMHhGekFWQmdvSmtpYUprL0lzWkFFWkZnZGxlR0Z0Y0d4bE1SQXdEZ1lEVlFRRApEQWRHWVd0bExVTkJNQjRYRFRJeE1Ea3lNakV4TlRJMU1Gb1hEVE14TURnd01URXhOVEkxTUZvd1FERVRNQkVHCkNnbVNKb21UOGl4a0FSa1dBMk52YlRFWE1CVUdDZ21TSm9tVDhpeGtBUmtXQjJWNFlXMXdiR1V4RURBT0JnTlYKQkFNTUIwWmhhMlV0UTBFd2dnRWlNQTBHQ1NxR1NJYjNEUUVCQVFVQUE0SUJEd0F3Z2dFS0FvSUJBUURqRjQ1NApXTVVKc1NqZ3ZzSk4rNE5na3dET2thUWdOMjdXVnJyVWRIVjhoVW9sYU4vMWdSeE80cTNES2lPRnhIZlBITzVXCmg0am1YQ3VVSTA0NXRwaEVaZDlCZDd4eUU2dUF3VGtya2pVWTczMExQRmZsYzJYQXE3TkYvMElidHB1aXQ3cFIKdUV2dTc0aVNMampLWVFaWHlxUGJLazlIaitWa2xCcTV2MjJUNTlxUmwzeFV5QUNRZGVEWVdPbTg2ZFgrY2FUVAorWWt6VXhDOHFRVVdBT2JUVThBWWZXbHA3NjRpY0NuMEdab3BCalN2dXQrZWxoTnl2eHk2alhRdU0xemZYMXUrCm56bVdiQzdOMTFqK2JDZWxVd2kwQUhIZUZrRFFrcHdPaGdycW9hbG5XUHk4VVNjMDFJRTIwZnlmTEptc3ZaVU4KZ3pnK0EwOGNqOThwemF2REFnTUJBQUdqVURCT01CMEdBMVVkRGdRV0JCVGtEenFQVEV0UGFHWWhBSzkrNjB6dgpBdklmS1RBZkJnTlZIU01FR0RBV2dCVGtEenFQVEV0UGFHWWhBSzkrNjB6dkF2SWZLVEFNQmdOVkhSTUVCVEFECkFRSC9NQTBHQ1NxR1NJYjNEUUVCQ3dVQUE0SUJBUURaY1A2cmJPWFMvSFcray8yczU1Nk14VU9vTkRNenRhdlIKQXJCa01HUGk5N2FGSW1MV2h6MVJqWGw3UjZKUmE0a3VVSGdiRXBuL3F1OUFISk1LejZ6UnVSRW9EM2UzTlIwVApJL3hkbHFJOVBzTmdIaDVwSzcvb281TzUrR21vTURoK3pRTHlnbXVYcWlSenpXV3NBOVcwaXpoMFJiZHRwQzR5CmdSYmxLMVBsTVhNeWs0eFArcHljV0treExMbWhqOWhuTDdkQlR3KzQzOW13eW5MZjlhSkdHajZaNmI2ZjJTS1EKWGlPZUNFOTVQRlR4S1BCbzRvQmdjOHI2NGFxc0FNelVCa0lQZWtnQ2xQWkJJSnJtKzZZdU9HbUROVUFtUCs3RApKdmRIbGVucGJ3RXJBZ3FKYWx4NjdxVGM2eVUzWUY5bTZMTkprRHlCYXJ6VU01MVdQc1JUCi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
kind: Secret
metadata:
  name: zabbix-mysql-client-tls-certs
  namespace: zabbix
type: Opaque



kubectl apply -f zabbix6-deploy.yaml

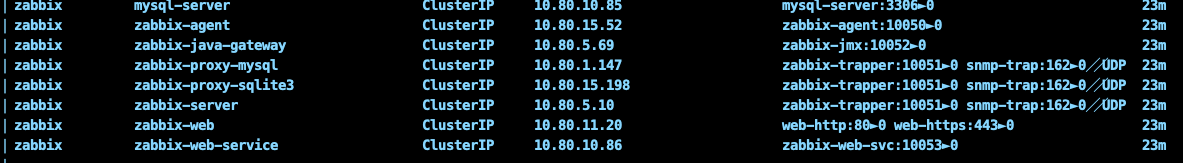

訪問k8s集群的svc

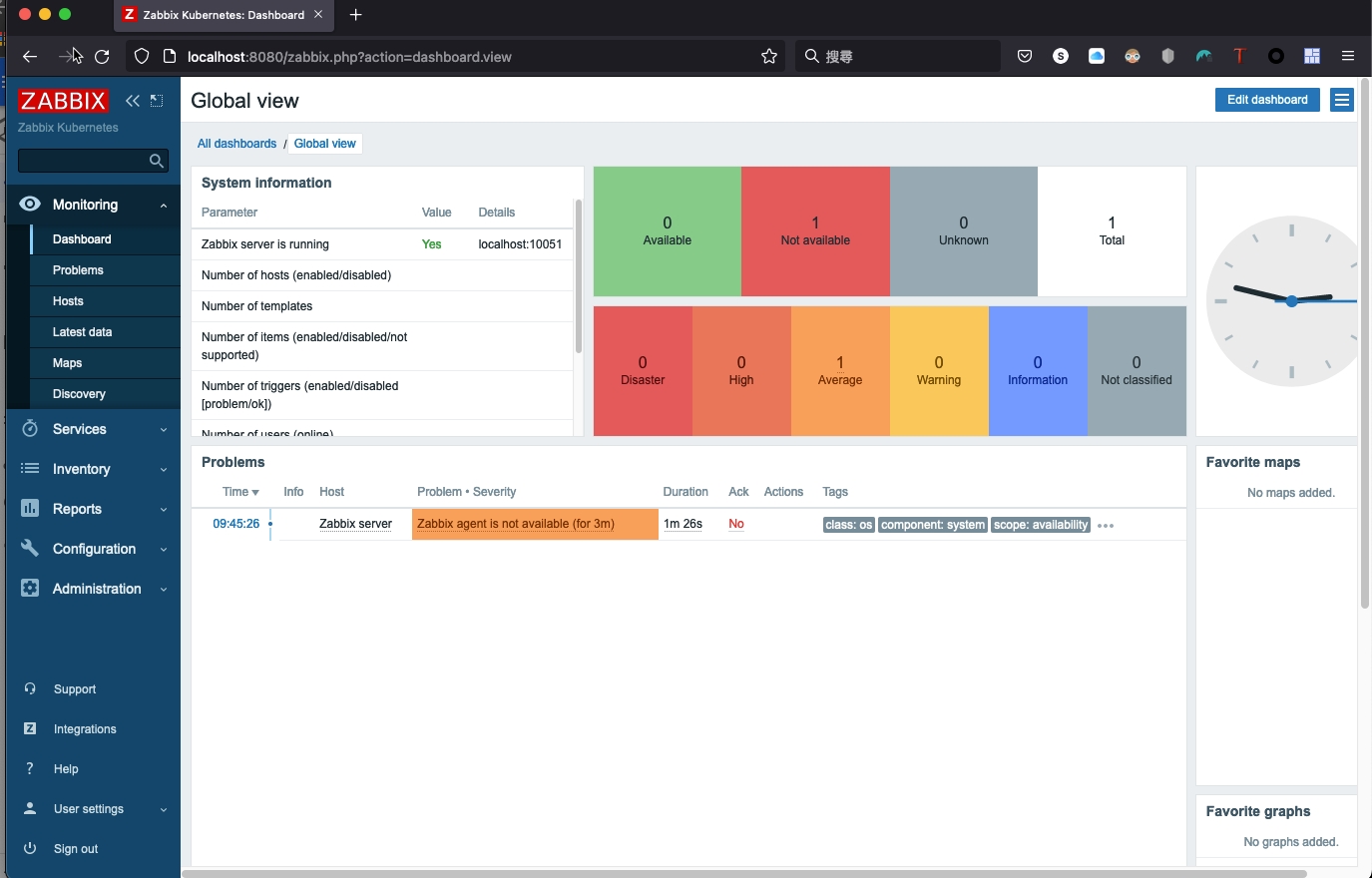

登入Zabbix Dashboard後台 Admin / zabbix



By tony

自由軟體愛好者~喜歡不斷的思考各種問題,有新的事物都會想去學習嘗試 做實驗並熱衷研究 沒有所謂頂天的技術 只有謙虛及不斷的學習 精進專業,本站主要以分享系統及網路相關知識、資源而建立。 Github http://stnet253.github.io

發佈留言

發佈留言必須填寫的電子郵件地址不會公開。 必填欄位標示為 *

這個網站採用 Akismet 服務減少垃圾留言。進一步了解 Akismet 如何處理網站訪客的留言資料
