下載 mariadb10.3
docker pull mariadb:10.3

下載 haproxy1.7.9

docker pull haproxy:alpine

haproxy設定檔

vi /home/docker/haproxy/conf/haproxy.cfg
global
chroot /usr/local
daemon
nbproc 1
group nobody
user nobody
#pidfile /opt/haproxy/logs/haproxy.pid
ulimit-n 65536
#spread-checks 5m
#stats timeout 5m
#stats maxconn 100



########預設配置############

defaults
mode tcp
retries 3 #兩次連接失敗就認為是伺服器不可用,也可以通過後面設置
option redispatch #當serverId對應的伺服器掛掉後,強制定向到其他健康的伺服器
option abortonclose #當伺服器負載很高的時候,自動結束掉當前佇列處理比較久的連結
maxconn 32000 #默認的最大連接數
timeout connect 5000ms #連接逾時
timeout client 30000ms #用戶端超時
timeout server 30000ms #伺服器超時
#timeout check 2000 #心跳檢測超時
log 127.0.0.1 local0 err #[err warning info debug]

########MariaDB配置#################

listen mariadb
bind 0.0.0.0:3306
mode tcp
balance roundrobin
server s1 192.168.1.38:3307 weight 1 maxconn 10000 check inter 10s
server s2 192.168.1.38:3308 weight 1 maxconn 10000 check inter 10s
server s3 192.168.1.38:3309 weight 1 maxconn 10000 check inter 10s

vi /etc/hosts

127.0.0.1 localhost localhost.localdomain localhost4 localhost
127.0.0.1 DKnetw
127.0.0.1 localhost
127.0.0.1 DKnetw.localdomain4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6

192.168.1.43 zabbix.tony
192.168.1.38 docker.tony

192.168.1.38 mariadb-0
192.168.1.38 mariadb-1
192.168.1.38 mariadb-2
建立docker執行目錄
docker
    ├── haproxy
    │   └── conf
    │   └── haproxy.cfg
    └── mariadb
        ├── cluster0
        │   ├── conf
        │   └── data
        ├── cluster1
        │   ├── conf
        │   └── data
        └── cluster2
            ├── conf
            └── data
mkdir /home/docker/mariadb/cluster0/
mkdir /home/docker/mariadb/cluster0/conf
mkdir /home/docker/mariadb/cluster0/data
mkdir /home/docker/mariadb/cluster1/
mkdir /home/docker/mariadb/cluster1/conf
mkdir /home/docker/mariadb/cluster1/data
mkdir /home/docker/mariadb/cluster2/
mkdir /home/docker/mariadb/cluster2/data
mkdir /home/docker/mariadb/cluster2/conf
Cluster0設定檔

Cluster0/server.cnf設定檔 先注釋掉  wsrep_cluster_address,因為要初始化用戶之後再開始集群

vi /home/docker/mariadb/cluster0/conf/server.cnf
[server]
[mysqld]
server_id=130
pid-file=/var/run/mysqld/mysqld.pid
socket=/var/run/mysqld/mysqld.sock
basedir=/usr
datadir=/var/lib/mysql
tmpdir=/tmp
user=mysql
skip-external-locking
skip-name-resolve
character-set-server=utf8
port=3306


#
# localhost which is more compatible and is not less secure.
#bind-address = 127.0.0.1
[server]
[mysqld]
server_id=130
pid-file=/var/run/mysqld/mysqld.pid
socket=/var/run/mysqld/mysqld.sock
basedir=/usr
datadir=/var/lib/mysql
tmpdir=/tmp
user=mysql
skip-external-locking
skip-name-resolve
character-set-server=utf8
port=3306


#
# Instead of skip-networking the default is now to listen only on
# localhost which is more compatible and is not less secure.
#bind-address = 127.0.0.1
#
# * Fine Tuning
#
max_connections=1000
connect_timeout=5
wait_timeout=600
max_allowed_packet=100M
thread_cache_size=128
sort_buffer_size=4M
bulk_insert_buffer_size =16M
tmp_table_size=32M
max_heap_table_size =32M
[galera]
wsrep_causal_reads=ON #節點應用完事務才返回查詢請求
wsrep_provider_options="gcache.size=128M"#同步複製緩衝集區
wsrep_certify_nonPK=ON #為沒有顯式申明主鍵的表生成一個用於certificationtest的主鍵,默認為ON
#log-bin=/app/galera/mysql-bin #如果不接從庫,注釋掉
#log_slave_updates=1 #如果不接從庫,注釋掉
query_cache_size=0 #關閉查詢緩存
wsrep_on=ON #開啟全同步複製模式
wsrep_provider=/usr/lib/galera/libgalera_smm.so #galera library
wsrep_cluster_name=MariaDB-Galera-Cluster
#wsrep_cluster_address="gcomm://192.168.1.38:4567,192.168.1.38:4568,192.168.1.38:4569" #galera cluster URL
wsrep_node_name=mariadb-0
#wsrep_node_address=172.18.0.4
wsrep_sst_auth=syncuser:syncuser
#wsrep_sst_method=xtrabackup-v2
wsrep_sst_method=rsync
binlog_format=row
default_storage_engine=InnoDB
innodb_autoinc_lock_mode=2 #主鍵自增模式修改為交叉模式
wsrep_slave_threads=8 #開啟並行複製執行緒,根據CPU核數設置
innodb_flush_log_at_trx_commit=0 #事務提交每隔1秒刷盤
innodb_buffer_pool_size=2G
[embedded]
[mariadb]
[mariadb-10.3]
Cluster1設定檔差異部分
vi /home/docker/mariadb/cluster1/conf/server.cnf
wsrep_node_name=mariadb-1
Cluster2設定檔差異部分
vi /home/docker/mariadb/cluster2/conf/server.cnf
wsrep_node_name=mariadb-2

啟動第一個節點

docker run -d --name mariadb-cluster0 --expose 4567 -p 4567:4567 -p 3307:3306 -e TIMEZONE=Asia/Taipei -v /home/docker/mariadb/cluster0/conf:/etc/mysql/conf.d -v /home/docker/mariadb/cluster0/data:/var/lib/mysql -e MYSQL_ALLOW_EMPTY_PASSWORD=yse mariadb:10.3

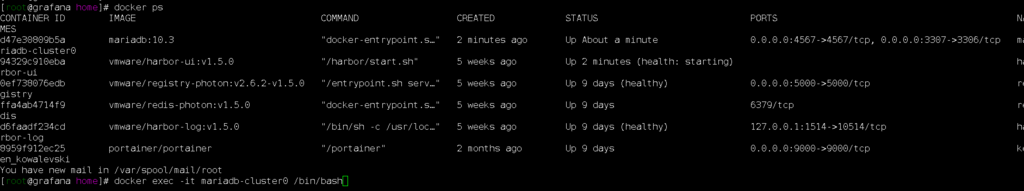

進容器加用戶
docker exec -it mariadb-cluster0 /bin/bash
mysql -uroot -p
GRANT ALL PRIVILEGES ON *.* TO 'root'@'%'IDENTIFIED BY '' WITH GRANT OPTION;
GRANT ALL PRIVILEGES ON *.* TO 'syncuser'@'%'IDENTIFIED BY 'syncuser' WITH GRANT OPTION;
flush privileges;
shutdown;

第二個節點,重復以上加用戶的操作

docker run -d --name mariadb-cluster1 --expose 4567 -p 4568:4567 -p 3308:3306 -e TIMEZONE=Asia/Taipei -v /home/docker/mariadb/cluster1/conf:/etc/mysql/conf.d -v /home/docker/mariadb/cluster1/data:/var/lib/mysql -e MYSQL_ALLOW_EMPTY_PASSWORD=yse mariadb:10.3
docker exec -it mariadb-cluster1 /bin/bash
mysql -uroot -p
GRANT ALL PRIVILEGES ON *.* TO 'root'@'%'IDENTIFIED BY '' WITH GRANT OPTION;
GRANT ALL PRIVILEGES ON *.* TO 'syncuser'@'%'IDENTIFIED BY 'syncuser' WITH GRANT OPTION;
flush privileges;
shutdown;
第三個節點,一樣重復以上加用戶的操作
docker run -d --name mariadb-cluster2 --expose 4567 -p 4569:4567 -p 3309:3306 -e TIMEZONE=Asia/Taipei -v /home/docker/mariadb/cluster2/conf:/etc/mysql/conf.d  -v /home/docker/mariadb/cluster2/data:/var/lib/mysql -e MYSQL_ALLOW_EMPTY_PASSWORD=yse mariadb:10.3
docker exec -it mariadb-cluster2 /bin/bash
mysql -uroot -p
GRANT ALL PRIVILEGES ON *.* TO 'root'@'%'IDENTIFIED BY '' WITH GRANT OPTION;
GRANT ALL PRIVILEGES ON *.* TO 'syncuser'@'%'IDENTIFIED BY 'syncuser' WITH GRANT OPTION;
flush privileges;
shutdown;

停止以及刪除所有以運行的容器

docker stop $(docker ps -a -q)
docker rm $(docker ps -a -q)

編輯設定檔 解開wsrep_cluster_address注釋,再次啟動3個節點  --wsrep-new-cluster 只有在第一次集群,第一個節點,才需要加上,下次啟動不需要此參數

vi /home/docker/mariadb/cluster0/conf/server.cnf
vi /home/docker/mariadb/cluster1/conf/server.cnf
vi /home/docker/mariadb/cluster2/conf/server.cnf

啟動集群

cluster0

docker run --name mariadb-cluster0 --expose 4567 -p 4567:4567 -p 3307:3306 -v /home/docker/mariadb/cluster0/conf:/etc/mysql/conf.d -v /home/docker/mariadb/cluster0/data:/var/lib/mysql mariadb:10.3 --wsrep-new-cluster

cluster1

docker run --name mariadb-cluster1 --expose 4567 -p 4568:4567 -p 3308:3306 -v /home/docker/mariadb/cluster1/conf:/etc/mysql/conf.d -v /home/docker/mariadb/cluster1/data:/var/lib/mysql mariadb:10.3

cluster2

docker run --name mariadb-cluster2 --expose 4567 -p 4569:4567 -p 3309:3306 -v /home/docker/mariadb/cluster2/conf:/etc/mysql/conf.d -v /home/docker/mariadb/cluster2/data:/var/lib/mysql mariadb:10.3

haproxy

docker run -d --restart=always --name haproxy --expose 3366 -p 3366:3306 -v /home/docker/haproxy/conf:/usr/local/etc/haproxy:ro haproxy:alpine

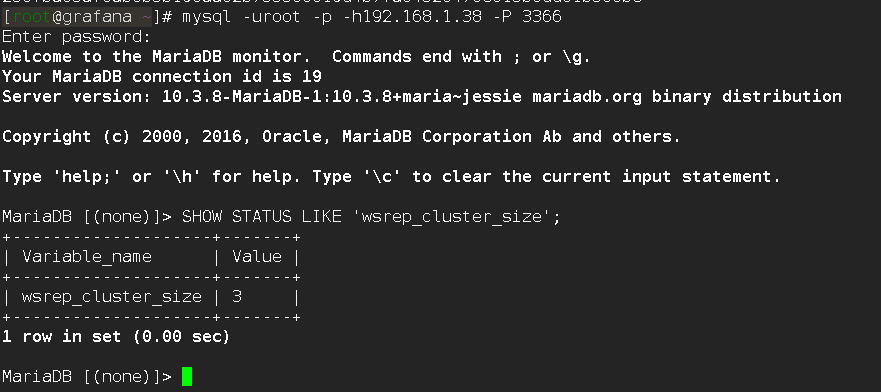

連進haproxy

mysql -uroot -p -h192.168.1.38 -P 3366

查看SHOW STATUS LIKE 'wsrep_cluster_size';
