L2TP VPN一鍵安裝包及設定範例

Bytony

2 月 22, 2014 #vpn

腳本來源出處：http://www.vpseek.com/automated-l2tp-over-ipsec-implement-script

Centos安裝腳本

#!/bin/bash

if [ $(id -u) != "0" ]; then
    printf "Error: You must be root to run this tool!\n"
    exit 1
fi
clear
printf "
####################################################
#                                                  #
# This is a Shell-Based tool of l2tp installation  #
# Version: 1.2                                     #
# Author: Zed Lau                                  #
# Website: http://zeddicus.com                     #
#                                                  #
####################################################
"
vpsip=`hostname -i`

iprange="10.0.99"
echo "Please input IP-Range:"
read -p "(Default Range: 10.0.99):" iprange
if [ "$iprange" = "" ]; then
	iprange="10.0.99"
fi

mypsk="vpsyou.com"
echo "Please input PSK:"
read -p "(Default PSK: vpsyou.com):" mypsk
if [ "$mypsk" = "" ]; then
	mypsk="vpsyou.com"
fi

clear
get_char()
{
SAVEDSTTY=`stty -g`
stty -echo
stty cbreak
dd if=/dev/tty bs=1 count=1 2> /dev/null
stty -raw
stty echo
stty $SAVEDSTTY
}
echo ""
echo "ServerIP:"
echo "$vpsip"
echo ""
echo "Server Local IP:"
echo "$iprange.1"
echo ""
echo "Client Remote IP Range:"
echo "$iprange.2-$iprange.254"
echo ""
echo "PSK:"
echo "$mypsk"
echo ""
echo "Press any key to start..."
char=`get_char`
clear
mknod /dev/random c 1 9
yum -y update
yum -y upgrade
yum install -y ppp iptables make gcc gmp-devel xmlto bison flex xmlto libpcap-devel lsof vim-enhanced
mkdir /ztmp
mkdir /ztmp/l2tp
cd /ztmp/l2tp
wget http://www.openswan.org/download/openswan-2.6.24.tar.gz
tar zxvf openswan-2.6.24.tar.gz
cd openswan-2.6.24
make programs install
rm -rf /etc/ipsec.conf
touch /etc/ipsec.conf
cat >>/etc/ipsec.conf<<EOF
config setup
    nat_traversal=yes
    virtual_private=%v4:10.0.0.0/8,%v4:192.168.0.0/16,%v4:172.16.0.0/12
    oe=off
    protostack=netkey

conn L2TP-PSK-NAT
    rightsubnet=vhost:%priv
    also=L2TP-PSK-noNAT

conn L2TP-PSK-noNAT
    authby=secret
    pfs=no
    auto=add
    keyingtries=3
    rekey=no
    ikelifetime=8h
    keylife=1h
    type=transport
    left=$vpsip
    leftprotoport=17/1701
    right=%any
    rightprotoport=17/%any
EOF
cat >>/etc/ipsec.secrets<<EOF
$vpsip %any: PSK "$mypsk"
EOF
sed -i 's/net.ipv4.ip_forward = 0/net.ipv4.ip_forward = 1/g' /etc/sysctl.conf
sysctl -p
iptables --table nat --append POSTROUTING --jump MASQUERADE
for each in /proc/sys/net/ipv4/conf/*
do
echo 0 > $each/accept_redirects
echo 0 > $each/send_redirects
done
/etc/init.d/ipsec restart
ipsec verify
cd /ztmp/l2tp
wget http://mirror.vpseek.com/sources/rp-l2tp-0.4.tar.gz
tar zxvf rp-l2tp-0.4.tar.gz
cd rp-l2tp-0.4
./configure
make
cp handlers/l2tp-control /usr/local/sbin/
mkdir /var/run/xl2tpd/
ln -s /usr/local/sbin/l2tp-control /var/run/xl2tpd/l2tp-control
cd /ztmp/l2tp
wget http://mirror.vpseek.com/sources/xl2tpd-1.2.4.tar.gz
tar zxvf xl2tpd-1.2.4.tar.gz
cd xl2tpd-1.2.4
make install
mkdir /etc/xl2tpd
rm -rf /etc/xl2tpd/xl2tpd.conf
touch /etc/xl2tpd/xl2tpd.conf
cat >>/etc/xl2tpd/xl2tpd.conf<<EOF
[global]
ipsec saref = yes
[lns default]
ip range = $iprange.2-$iprange.254
local ip = $iprange.1
refuse chap = yes
refuse pap = yes
require authentication = yes
ppp debug = yes
pppoptfile = /etc/ppp/options.xl2tpd
length bit = yes
EOF
rm -rf /etc/ppp/options.xl2tpd
touch /etc/ppp/options.xl2tpd
cat >>/etc/ppp/options.xl2tpd<<EOF
require-mschap-v2
ms-dns 8.8.8.8
ms-dns 8.8.4.4
asyncmap 0
auth
crtscts
lock
hide-password
modem
debug
name l2tpd
proxyarp
lcp-echo-interval 30
lcp-echo-failure 4
EOF
cat >>/etc/ppp/chap-secrets<<EOF
test l2tpd test123 *
EOF
touch /usr/bin/zl2tpset
echo "#/bin/bash" >>/usr/bin/zl2tpset
echo "for each in /proc/sys/net/ipv4/conf/*" >>/usr/bin/zl2tpset
echo "do" >>/usr/bin/zl2tpset
echo "echo 0 > \$each/accept_redirects" >>/usr/bin/zl2tpset
echo "echo 0 > \$each/send_redirects" >>/usr/bin/zl2tpset
echo "done" >>/usr/bin/zl2tpset
chmod +x /usr/bin/zl2tpset
iptables --table nat --append POSTROUTING --jump MASQUERADE
zl2tpset
xl2tpd
cat >>/etc/rc.local<<EOF
iptables --table nat --append POSTROUTING --jump MASQUERADE
/etc/init.d/ipsec restart
/usr/bin/zl2tpset
/usr/local/sbin/xl2tpd
EOF
clear
ipsec verify
printf "
####################################################
#                                                  #
# This is a Shell-Based tool of l2tp installation  #
# Version: 1.2                                     #
# Author: Zed Lau                                  #
# Website: http://zeddicus.com                     #
#                                                  #
####################################################
if there are no [FAILED] above, then you can
connect to your L2TP VPN Server with the default
user/pass below:

ServerIP:$vpsip
username:test
password:test123
PSK:$mypsk

"

Ubuntu 安裝腳本

#!/bin/bash

if [ $(id -u) != "0" ]; then
    printf "Error: You must be root to run this tool!\n"
    exit 1
fi
clear
printf "
####################################################
#                                                  #
# This is a Shell-Based tool of l2tp installation  #
# Version: 1.2                                     #
# Author: Zed Lau                                  #
# Website: http://zeddicus.com                     #
# For Ubuntu 32bit and 64bit                       #
#                                                  #
####################################################
"
vpsip=`ifconfig  | grep 'inet addr:'| grep -v '127.0.0.1' | cut -d: -f2 | awk 'NR==1 { print $1}'`

iprange="10.0.99"
echo "Please input IP-Range:"
read -p "(Default Range: 10.0.99):" iprange
if [ "$iprange" = "" ]; then
	iprange="10.0.99"
fi

mypsk="vpsyou.com"
echo "Please input PSK:"
read -p "(Default PSK: vpsyou.com):" mypsk
if [ "$mypsk" = "" ]; then
	mypsk="vpsyou.com"
fi

clear
get_char()
{
SAVEDSTTY=`stty -g`
stty -echo
stty cbreak
dd if=/dev/tty bs=1 count=1 2> /dev/null
stty -raw
stty echo
stty $SAVEDSTTY
}
echo ""
echo "ServerIP:"
echo "$vpsip"
echo ""
echo "Server Local IP:"
echo "$iprange.1"
echo ""
echo "Client Remote IP Range:"
echo "$iprange.2-$iprange.254"
echo ""
echo "PSK:"
echo "$mypsk"
echo ""
echo "Press any key to start..."
char=`get_char`
clear

apt-get -y update
apt-get -y upgrade
apt-get -y install libgmp3-dev bison flex libpcap-dev ppp iptables make gcc lsof vim
mkdir /ztmp
mkdir /ztmp/l2tp
cd /ztmp/l2tp
wget http://www.openswan.org/download/openswan-2.6.24.tar.gz
tar zxvf openswan-2.6.24.tar.gz
cd openswan-2.6.24
make programs install
rm -rf /etc/ipsec.conf
touch /etc/ipsec.conf
cat >>/etc/ipsec.conf<<EOF
config setup
    nat_traversal=yes
    virtual_private=%v4:10.0.0.0/8,%v4:192.168.0.0/16,%v4:172.16.0.0/12
    oe=off
    protostack=netkey

conn L2TP-PSK-NAT
    rightsubnet=vhost:%priv
    also=L2TP-PSK-noNAT

conn L2TP-PSK-noNAT
    authby=secret
    pfs=no
    auto=add
    keyingtries=3
    rekey=no
    ikelifetime=8h
    keylife=1h
    type=transport
    left=$vpsip
    leftprotoport=17/1701
    right=%any
    rightprotoport=17/%any
EOF
cat >>/etc/ipsec.secrets<<EOF
$vpsip %any: PSK "$mypsk"
EOF
sed -i 's/#net.ipv4.ip_forward=1/net.ipv4.ip_forward=1/g' /etc/sysctl.conf
sed -i 's/#net.ipv6.conf.all.forwarding=1/net.ipv6.conf.all.forwarding=1/g' /etc/sysctl.conf
sysctl -p
iptables --table nat --append POSTROUTING --jump MASQUERADE
for each in /proc/sys/net/ipv4/conf/*
do
echo 0 > $each/accept_redirects
echo 0 > $each/send_redirects
done
/etc/init.d/ipsec restart
ipsec verify
cd /ztmp/l2tp
wget http://mirror.vpseek.com/sources/rp-l2tp-0.4.tar.gz
tar zxvf rp-l2tp-0.4.tar.gz
cd rp-l2tp-0.4
./configure
make
cp handlers/l2tp-control /usr/local/sbin/
mkdir /var/run/xl2tpd/
ln -s /usr/local/sbin/l2tp-control /var/run/xl2tpd/l2tp-control
cd /ztmp/l2tp
wget http://mirror.vpseek.com/sources/xl2tpd-1.2.4.tar.gz
tar zxvf xl2tpd-1.2.4.tar.gz
cd xl2tpd-1.2.4
make install
mkdir /etc/xl2tpd
rm -rf /etc/xl2tpd/xl2tpd.conf
touch /etc/xl2tpd/xl2tpd.conf
cat >>/etc/xl2tpd/xl2tpd.conf<<EOF
[global]
ipsec saref = yes
[lns default]
ip range = $iprange.2-$iprange.254
local ip = $iprange.1
refuse chap = yes
refuse pap = yes
require authentication = yes
ppp debug = yes
pppoptfile = /etc/ppp/options.xl2tpd
length bit = yes
EOF
rm -rf /etc/ppp/options.xl2tpd
touch /etc/ppp/options.xl2tpd
cat >>/etc/ppp/options.xl2tpd<<EOF
require-mschap-v2
ms-dns 8.8.8.8
ms-dns 8.8.4.4
asyncmap 0
auth
crtscts
lock
hide-password
modem
debug
name l2tpd
proxyarp
lcp-echo-interval 30
lcp-echo-failure 4
EOF
cat >>/etc/ppp/chap-secrets<<EOF
test l2tpd test123 *
EOF
touch /usr/bin/zl2tpset
echo "#/bin/bash" >>/usr/bin/zl2tpset
echo "for each in /proc/sys/net/ipv4/conf/*" >>/usr/bin/zl2tpset
echo "do" >>/usr/bin/zl2tpset
echo "echo 0 > \$each/accept_redirects" >>/usr/bin/zl2tpset
echo "echo 0 > \$each/send_redirects" >>/usr/bin/zl2tpset
echo "done" >>/usr/bin/zl2tpset
chmod +x /usr/bin/zl2tpset
iptables --table nat --append POSTROUTING --jump MASQUERADE
zl2tpset
xl2tpd
cat >>/etc/rc.local<<EOF
iptables --table nat --append POSTROUTING --jump MASQUERADE
/etc/init.d/ipsec restart
/usr/bin/zl2tpset
/usr/local/sbin/xl2tpd
EOF
clear
ipsec verify
printf "
####################################################
#                                                  #
# This is a Shell-Based tool of l2tp installation  #
# Version: 1.2                                     #
# Author: Zed Lau                                  #
# Website: http://zeddicus.com                     #
# For Ubuntu 32bit and 64bit                       #
#                                                  #
####################################################
if there are no [FAILED] above, then you can
connect to your L2TP VPN Server with the default
user/pass below:

ServerIP:$vpsip
username:test
password:test123
PSK:$mypsk

"

連線異常排除

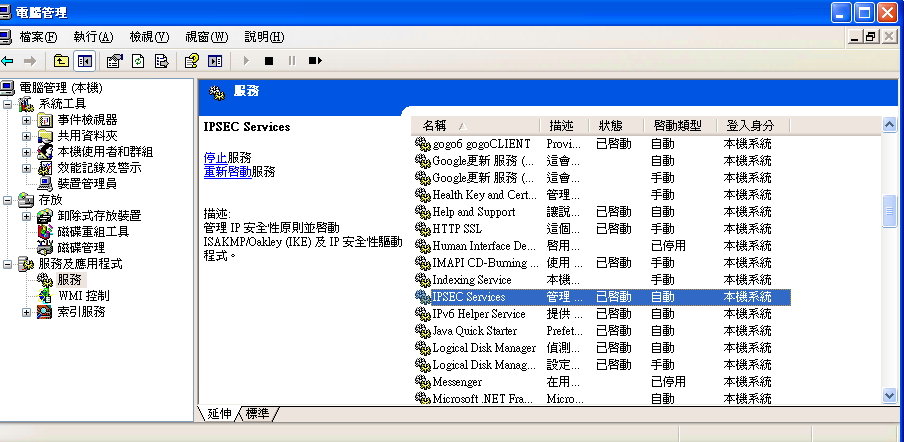

1.XP 用戶：請確保“控制台->管理工具->服務”中的 IPSEC 服務被啟動

ipsec

2.win7、win2008 server出現提示766、781、789、792等缺少證書類錯誤

新建ipsec.txt後更改尾碼名為reg並執行它

重啟你的電腦

電腦啟動後，重新連接

ipsec.reg檔內容如下：

REGEDIT4

[HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Rasman\Parameters]
"prohibitipsec"=dword:00000001

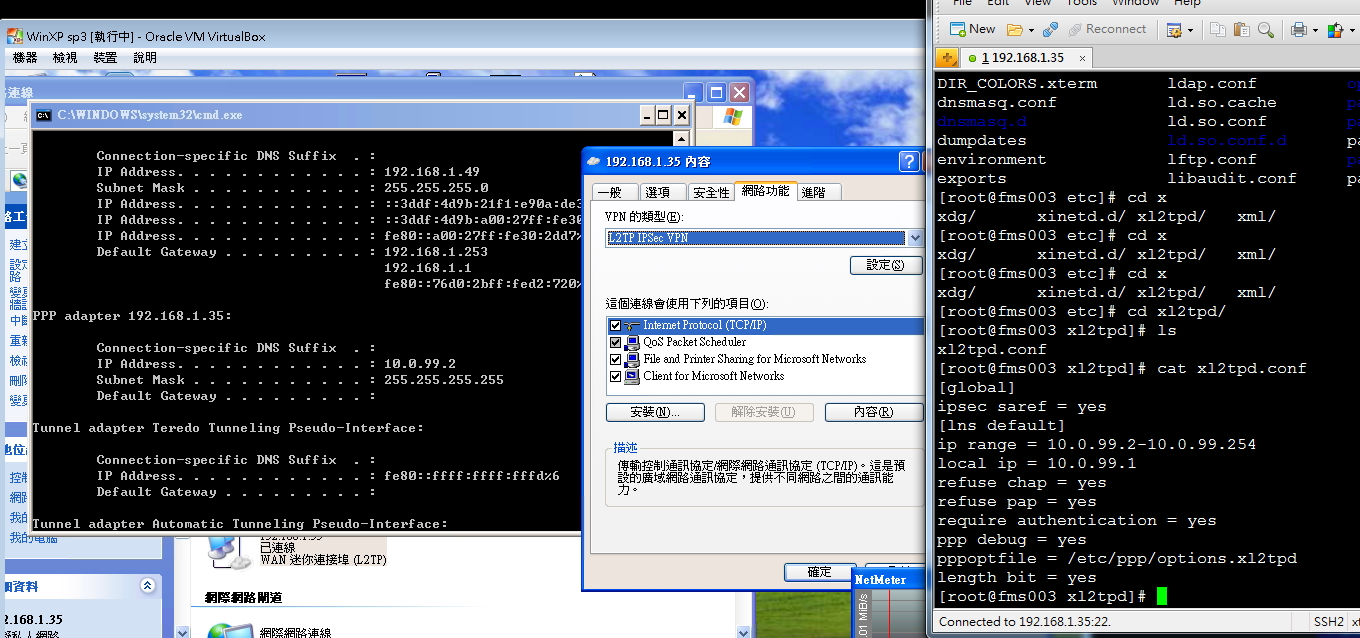

連線L2TP設定如下圖

L2TP-client

l2tp設定部份

/etc/xl2tpd/xl2tpd.conf
修改/etc/xl2tpd/xl2tpd.conf
   ip range = 您希望對方可以得到哪些ip
   local ip = server 對內ip
   ex:
   [lns default]
   ip range = 192.168.0.11-192.168.0.13
   local ip = 192.168.0.1
   require chap = yes
   refuse pap = yes
   require authentication = yes
   name = LinuxVPNserver
   ppp debug = yes
   pppoptfile = /etc/ppp/options.xl2tpd
   length bit = yes
修改 /etc/ppp/options.xl2tpd
   ms-dns = 內部ms dns的ip
   ex:
   ipcp-accept-local
   ipcp-accept-remote
   ms-dns  192.168.0.2
   noccp
   auth
   crtscts
   idle 1800
   mtu 1410
   mru 1410
   defaultroute
   debug
   lock
   proxyarp
   connect-delay 5000
ipsec 設定(預先共用金鑰)

   6.1 設定 psk (pre-shared-key)
       vi /etc/ipsec.d/william.secrets
###############################
%any: PSK "your shared key"
server_ip: PSK "your shared key"
###############################

       其中 server_ip 是您的server 對外ip,
       "your shared key"是你的共用金鑰

   6.2 vi /etc/ipsec.conf
#############################################
version 2.0     # conforms to second version of ipsec.conf specification

# basic configuration
config setup
        # Debug-logging controls:  "none" for (almost) none, "all" for lots.
        # klipsdebug=none
        # plutodebug="control parsing"
        # For Red Hat Enterprise Linux and Fedora, leave protostack=netkey
        protostack=netkey
        nat_traversal=yes
        virtual_private=%v4:10.0.0.0/8,%v4:192.168.0.0/16,%v4:172.16.0.0/12
        oe=off
        # Enable this if you see "failed to find any available worker"
        nhelpers=0

#You may put your configuration (.conf) file in the "/etc/ipsec.d/" and uncomment this.
#include /etc/ipsec.d/*.conf
conn L2TP-PSK-NAT
    rightsubnet=vhost:%priv
    also=L2TP-PSK-noNAT

conn L2TP-PSK-noNAT
    authby=secret
    pfs=no
    auto=add
    keyingtries=3
    rekey=no
    ikelifetime=8h
    keylife=1h
    type=transport
    left=<你的對外ip>
    leftprotoport=17/1701
    right=%any
    rightprotoport=17/%any

By tony

自由軟體愛好者~喜歡不斷的思考各種問題，有新的事物都會想去學習嘗試 做實驗並熱衷研究 沒有所謂頂天的技術 只有謙虛及不斷的學習 精進專業，本站主要以分享系統及網路相關知識、資源而建立。 Github http://stnet253.github.io

Related Post

Linux/Unix

Rocky Linux 8.6 安裝docker及docker-compose

7 月 18, 2022 tony
Linux/Unix 樹莓派

Raspberry Pi 4 Ubuntu20.04升級22.04

4 月 26, 2022 tony
Linux/Unix

簡介cURL綜合傳輸工具

11 月 7, 2021 tony

發佈留言

發佈留言必須填寫的電子郵件地址不會公開。 必填欄位標示為 *

這個網站採用 Akismet 服務減少垃圾留言。進一步了解 Akismet 如何處理網站訪客的留言資料。

You missed

Kubernetes

Telepresence 在本地除錯 Kubernetes 微服務

2023 年 06 月 22 日 tony
Kubernetes

k8s 資源管理工具ktop

2023 年 05 月 04 日 tony
DevOps

Harbor 建立私有helm倉庫及ArgoCD拉取設定

2023 年 03 月 22 日 tony
Kubernetes

GKE 安裝 Cilium Service Mesh 1.3.0

2023 年 02 月 18 日 tony
